KITZ Check Valves

- KITZ Check valves are designed to prevent backflow by constantly keeping fluid flowing in a single direction

- Fig. F150, R125, YR, RF, 10SF, UN, UO, UOM, 10SFBF, UOB, OB, 10FCO, 10FWZ, 125FCO, 20SN, 150SRB, 150SCOS, 300SCOS, 600SCOS, 900SCOS, 1500SCOS, 10UMA, 150UMA, 300UMA, 10SWU, 150UNA, 150UOA, 300UOA, 600UOA, 150UOAM, 300UNA,  300UOAM, AK150UOM, AK300UOM

___________________________________________

Structures of KITZ Check Valves

___________________________________________

Technical KITZ Check Valves

___________________________________________

Operation of KITZ Check Valves

___________________________________________

Types of Check Valves KITZ

✦ KITZ Bronze / Brass Check Valves

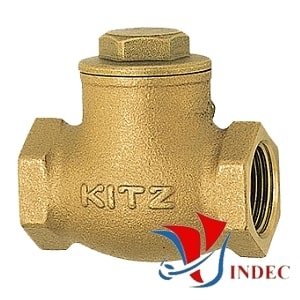

KITZ BRONZE SWING CHECK VALVE, THREADED ENDS.
200psi. Water Oil Gas
125psi. Saturated Steam
Model. R

KITZ BRONZE LIFT CHECK VALVE, THREADED ENDS
300psi. Water Oil Gas
150psi. Saturated Steam
Model. F

KITZ BRONZE LIFT CHECK VALVE, THREADED ENDS
250psi. Water Oil Gas: Non-Shock
Model. RF

KITZ BRONZE SWING CHECK VALVE, JIS 10K FF FLANGED ENDS
14kgf/cm2 Static water 120 Deg.C
10kgf/cm2  water Oil 120 Deg.C
10kgf/cm2 Saturated Steam
Model. OB

KITZ BRONZE  WAFER CHECK VALVE, JIS 10K
14 kgf/cm2 Static Water 80deg. C
10kgf/cm2 Water, Oil, Gas 80deg. C
Model. 10FW

✦ KITZ Cast Iron / Ductile Iron Check Valves

KITZ CAST IRON SWING CHECK VALVE, JIS10K F.F. FLANGED ENDS
14kgf/cm2 Static water /Size 10" to 14"  120 Deg.C
10kfg/cm2 Water Oil/Size 10" to 14"   120 Deg.C
7kfg/cm2 Saturated Steam
Model: 10FCO

KITZ CAST IRON SWING CHECK VALVE, ANSI 125 FF FLANGED ENDS
200psi Water Oil Gas
125 Saturated Steam
Model: 125FCO

KITZ DUCTILE IRON LIFT CHECK VALVE, THREADED ENDS
14kgf/cm2 Static water 120 Deg.C
10kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
Model: 10SF

KITZ DUCTILE IRON LIFT CHECK VALVE, JIS 10K FLANGED ENDS
14kgf/cm2 Static water 120 Deg.C
10kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
Model: 10SFBF

KITZ CAST IRON JIS 10K WAFER CHECK VALVE
14 kgf/cm2 Static Water 80deg. C
10kgf/cm2 Water, Oil, Gas 80deg. C
Model: 10FW

KITZ DUCTILE IRON SWING CHECK VALVE-FLANGED ENDS
14kgf/cm2 Static water 120 Deg.C
12kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
10kfg/cm2 Water Oil Gas/ Steam 300 Deg.C
Model: 10SRBF

KITZ DUCTILE IRON SWING CHECK VALVE, ANSI150 FLANGED ENDS
17.6kgf/cm2 WOG -5 to -38 deg C
15.1kfg/cm2 Water Oil Gas/ Steam 149 Deg.C
12kfg/cm2 Water Oil Gas/ Steam 260 Deg.C
8.8kfg/cm2 Water Oil Gas/ Steam 343 Deg.C
Model: 150SRB

KITZ DUCTILE IRON LIFT CHECK VALVE, THREADED ENDS
28kgf/cm2 Static water 120 Deg.C
25kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
20kfg/cm2 Water Oil Gas/ Steam 350 Deg.C
Model: 20SN

KITZ DUCTILE IRON LIFT CHECK VALVE, JIS 20K FLANGED ENDS
28kgf/cm2 Static water 120 Deg.C
25kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
20kfg/cm2 Water Oil Gas/ Steam 350 Deg.C
Model: 20SNB

KITZ DUCTILE IRON SWING CHECK VALVE, JIS 20K FLANGED ENDS
28kgf/cm2 Static water 120 Deg.C
25kfg/cm2 Water Oil Gas/ Steam 220 Deg.C
20kfg/cm2 Water Oil Gas/ Steam 350 Deg.C
Model: 20SOB

✦ KITZ Cast Steel Check Valves

KITZ STEEL SWING CHECK VALVE, BOLTED COVER, ANSI 150 RF FLANGED ENDS.
Body: A216 Gr WCB
Disc: Carbon Steel + 13Cr
Body Seat Ring: Carbon Steel  + HF
Pressure-Temperature ratings: ASME B16.34
Maker: KITZ (Japan) - Made in china
Mdel. 150SCOS

KITZ STEEL SWING CHECK VALVE, BOLTED COVER, ANSI 300 RF FLANGED ENDS.
Body: A216 Gr WCB
Disc: Carbon Steel + 13Cr
Body Seat Ring: Carbon Steel  + HF
Pressure-Temperature ratings: ASME B16.34
Maker: KITZ (Japan) - Made in china
Model: 300SCOS

✦ KITZ Stainless Steel Check Valves

KITZ STAINLESS STEEL SWING CHECK VALVE, THREADED ENDS
10kfg/cm2 Water Oil Gas 180 Deg.C
Model: UO

KITZ STAINLESS STEEL SWING CHECK VALVE, JIS 10K FLANGED ENDS
10kfg/cm2 Water Oil Gas 180 Deg.C
Model: UOB

KITZ STAINLESS STEEL LIFT CHECK VALVE, THREADED ENDS
10kfg/cm2 Water Oil Gas 180 Deg.C
Model: UN

KITZ STAINLESS STEEL SWING CHECK VALVE, JIS 20K RF FLANGED ENDS
Shell wall thickness and general valve design specifications: ASME B16.34
Body, Cover, Disc: SCS13A
Pressure-Temperature ratings: JIS B2201
Model: 20UOA

KITZ STAINLESS STEEL SWING CHECK VALVE, ANSI 150# RF FLANGED ENDS.
Shell wall thickness and general valve design specifications: ASME B16.34
Body, Cover, Disc: SCS13A
Pressure-Temperature ratings Service Range: ANSI B16.34
Model: 150UOA
Model: 300UOA

KITZ STAINLESS STEEL SWING CHECK VALVE, JIS 10K RF FLANGED ENDS
Shell wall thickness and general valve design specifications: ASME B16.34
Body, Cover, Disc: SCS13A
Pressure-Temperature ratings: JIS B2201
FIG. 10UOA

___________________________________________

Advantages of KITZ Check Valves

___________________________________________

Disadvantages of KITZ Check Valves

___________________________________________

Key Features of KITZ Check Valves

- Bền đẹp, thời gian sử dụng lâu

- Mẫu mã đa dạng, chủng loại, dùng cho hầu hết các ngành công nghiệp và dân dụng

___________________________________________

Application of Check Valves KITZ

___________________________________________

Size of KITZ Check Valves

- Kitz check valve DN15 (15mm/ 15A) Piping size 21 mm

- Kitz check valve DN20 (20mm/ 20A) Piping size 27mm

- Kitz check valve DN25 (25mm/ 25A) Piping size 34 mm

- Kitz check valve DN32 (32mm/ 32A) Piping size 42  mm

- Kitz check valve DN40 (40mm/ 40A) Piping size 49 mm

- Kitz check valve DN50 (50mm/ 50A) đường ống size 60 mm

- Kitz check valve DN65 (65mm/ 65A) Piping size 76 mm

- Kitz check valve DN80 (80mm/80A) Piping size 90 mm

- Kitz check valve DN100 (100mm/100A) Piping size 114 mm

- Kitz check valve DN125 (125mm/125A) Piping size 140 mm

- Kitz check valve DN150 (150mm/150A) Piping size 168 mm

- Kitz check valve DN200 (200mm/200A) Piping size 220 mm

- Kitz check valve DN250 (250mm/250A) Piping size 273 mm

___________________________________________

Báo Giá Van 1 Chiều KITZ

- Van 1 chiều KITZ Nhật bản giá cả tốt nhất thị trường tại VINDEC

___________________________________________

Mua Van 1 Chiều VINDEC

- VINDEC là địa chỉ phân phối VAN 1 CHIỀU uy tín tại Việt nam có thể làm hài lòng khách hàng với năng lực đội ngũ nhân viên có kỹ thuật trình độ kỹ thuật cao, được đào tạo chuyên nghiệp bài bản của hãng.

- Quý khách hàng có thể tìm kiếm hoặc Download về máy Catalogue sản phẩm của hãng tại Website của chúng tôi với thông số kỹ thuật rõ ràng chính xác nhất của hãng tại: VAN 1 CHIỀU

- Thêm vào đó, VINDEC chúng tôi có Kho Hàng tại Hồ Chí Minh và có Kho Hàng + Xưởng Sản Xuất với diện tích trên 2.000m2 tại Hà Nội.

- VINDEC với năng lực và kinh nghiệm gần 20 năm cùng với đội ngũ kỹ sư giầu chuyên môn, chúng tôi tự đáp ứng được các dự án lớn về hàng Van Công Nghiệp.chúng tôi luôn đồng hành cùng phát triển.
