KITZ Ball Valves

- Because of their excellent operating characteristics, ball valves are used for the broadest spectrum of applications and are available in a wide range of sizes and materials.

- Fig. SZA600, T400, TN400, TK600, UTKM600, 10UT, 10UTB, 20UTB, 150UTB, 300UTB, 125FCTB, 10FCTB, 10STBF, 10SCTB, 20SCTB, 150SCTB-FS, 300SCTB-FS, 10UTB2L, 10UTB2T...

___________________________________________

Structures of KITZ Ball Valves

___________________________________________

Technical KITZ Ball Valves

___________________________________________

Operation of KITZ Ball Valves

___________________________________________

Types of Ball Valves KITZ

- KITZ Bronze ball valves, KITZ Brass ball valves, KITZ Cast iron ball valves, KITZ Ductile ball valves, KITZ Cast Steel Ball valves, KITZ Stainless steel ball valves...

✦ BRONZE & BRASS BALL VALVE KITZ

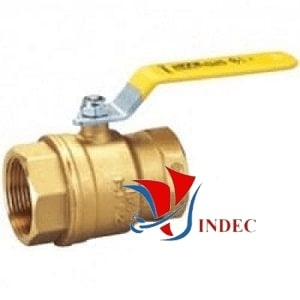

KITZ FULL PORT, TWO-PIECE BRASS BALL VALVE, THREADED ENDS.
Body, Body Cap, Ball: Forged Brass - Stem: Brass Rod; Ball Seat: PTFE
150psi Saturated Steam  -  600psi Cold Water, Oil, Gas
Model. SZA 600

___________________________________________

KITZ FULL PORT, TWO-PIECE FORGED BRASS BALL VALVE, THREADED ENDS.
Body, Body Cap, Ball: Forged Brass
Stem: Brass Rod; Ball Seat: PTFE
10Pa: Water
Model: SZC

___________________________________________

KITZ BRASS BALL VALVE, BS21 THREADED ENDS
Class 600, Reduced Bore, One-piece body, Blowout-proof Stem.
Body: Forged Brass
Ball: Forged Brass with Cr plating
Stem: K-Metal
Ball Seat: Reinforced PTFE
600psi. Water, Oil, Gas
150psi Water, Oil, Gas 150 Deg.C
Manufactured in Thailand
Model. TK

___________________________________________

KITZ BRONZE BALL VALVE, JIS 10K FF FLANGED ENDS.
14kgf/cm2 Water, Oil, Gas (non-shock)
7kgf/cm2 Water, Oil, Gas at 150 deg. C
Model. TB

___________________________________________

KITZ BRONZE 3-WAY BALL VALVE- L. PORT-THREADED ENDS
400psi. Water Oil Gas
100psi Water Oil Gas 150 Deg.C
Model. TN

___________________________________________

KITZ BRONZE 3-WAY BALL VALVE- T. PORT-THREADED ENDS
400psi. Water Oil Gas
100psi Water Oil Gas 150 Deg.C
Model. T4T

___________________________________________

✦ CAST IRON & DUCTILE IRON BALL VALVE KITZ

KITZ Cast Iron Ball Valve, JIS 10K FF Flanged Ends
14kgf/cm2 Static water 120 Deg.C
10kfg/cm2 Water Oil 120 Deg.C
7kfg/cm2 Saturated Steam
Model. 10FCTB

___________________________________________

KITZ Cast Iron Ball Valve, ANSI 125 FF Flanged Ends
14kgf/cm2 Static water 120 Deg.C
10kfg/cm2 Water Oil 120 Deg.C
7kfg/cm2 Saturated Steam
Model. 125FCTB

___________________________________________

KITZ Ductile Iron Full Bore Ball Valve, JIS 10K FF Flanged Ends
14kgf/cm2 Water Oil Gas @ 120Deg.C
10kgf/cm2 Water Oil Gas @ 160Deg.C (to 4")
10kgf/cm2 Water Oil Gas @ 140Deg.C (to 8")
12kgf/cm2 Gas @ 80Deg.C
Model. 10STBF

___________________________________________

✦ STAINLESS STEEL BALL VALVE KITZ

KITZ Stainless Steel Ball Valve, Class 600, Threaded Ends
Body, Cap: CF8M; Stem, Ball: 316; Seat: reinforced PTFE
600psi Water Oil & Gas at Room Temp.
150psi Saturated Steam
Model. UTKM

___________________________________________

KITZ Stainless Steel Ball Valve, JIS10K # Flanged Ends.
Body, Cap: CF8; Stem, Ball: 304; Seat: Hypatite PTFE.
More specifications: refer to catalogues attached
Model. 10UTB

___________________________________________

KITZ Stainless Steel Ball Valve, 150# Flanged Ends.
Body, Cap: CF8; Stem, Ball: 304; Seat: Hypatite PTFE.
More specifications: refer to catalogues attached
Model. 150UTB

___________________________________________

KITZ Stainless Steel Ball Valve, 300# Flanged Ends.
Body, Cap: CF8; Stem, Ball: 304; Seat: Hypatite PTFE.
More specifications: refer to catalogues attached
Model. 300UTB

___________________________________________

KITZ STAINLESS STEEL BALL VALVE, CLASS 800, THREADED ENDS.
Body, Cap: CF8M; Stem, Ball: 316; Seat: PTFE
800psi Water Oil & Gas @ -29 Deg.C to +120 Deg.C
Model. UTHM

___________________________________________

✦ CAST STEEL BALL VALVE KITZ

KITZ Steel Floating Ball Valve, JIS 10K Flanged Ends.
Full bore, split body, Fire-safe design (flexible graphite packing and gasket)
Body: A216 Gr WCB - Ball: 304 Stainless Steel
Seat: Hypatite PTFE - Pressure-Temperature ratings: ASME B16.34
Made in Japan
Model. 10SCTB

___________________________________________

KITZ Steel Floating Ball Valve, ANSI 150 RF Flanged Ends.
Full bore, split body, Fire-safe design (flexible graphite packing and gasket)
Body: A216 Gr WCB -  Ball: 304 Stainless Steel
Seat: Hypatite PTFE -  Pressure-Temperature ratings: ASME B16.34
Made in Japan
Model. 150SCTB-FS

___________________________________________

KITZ Steel Floating Ball Valve, ANSI 300 RF Flanged Ends.
Full bore, split body, Fire-safe design (flexible graphite packing and gasket)
Body: A216 Gr WCB - Ball: 304 Stainless Steel
Seat: Hypatite PTFE -  Pressure-Temperature ratings: ASME B16.34
Made in Japan
Model. 300SCTB

___________________________________________

Advantages of KITZ Ball Valves

___________________________________________

Disadvantages of KITZ Ball Valves

___________________________________________

Key Features of KITZ Ball Valves

___________________________________________

Application of Ball Valves KITZ

___________________________________________

Size of KITZ Ball Valves

- KITZ Ball Valve DN15 (15mm/ 15A) Piping size 21 mm

- KITZ Ball Valve DN20 (20mm/ 20A) Piping size 27mm

- KITZ Ball Valve DN25 (25mm/ 25A) Piping size 34 mm

- KITZ Ball Valve DN32 (32mm/ 32A) Piping size 42  mm

- KITZ Ball Valve DN40 (40mm/ 40A) Piping size 49 mm

- KITZ Ball Valve DN50 (50mm/ 50A) đường ống size 60 mm

- KITZ Ball Valve DN65 (65mm/ 65A) Piping size 76 mm

- KITZ Ball Valve DN80 (80mm/80A) Piping size 90 mm

- KITZ Ball Valve DN100 (100mm/100A) Piping size 114 mm

- KITZ Ball Valve DN125 (125mm/125A) Piping size 140 mm

- KITZ Ball Valve DN150 (150mm/150A) Piping size 168 mm

- KITZ Ball Valve DN200 (200mm/200A) Piping size 220 mm

- KITZ Ball Valve DN250 (250mm/250A) Piping size 273 mm

Báo Giá Van Bi KITZ

___________________________________________

Mua Van Bi KITZ

- VINDEC là địa chỉ phân phối VAN BI uy tín tại Việt nam có thể làm hài lòng khách hàng với năng lực đội ngũ nhân viên có kỹ thuật trình độ kỹ thuật cao, được đào tạo chuyên nghiệp bài bản của hãng.

- Quý khách hàng có thể tìm kiếm hoặc Download về máy Catalogue sản phẩm Van KITZ của hãng tại Website của chúng tôi với thông số kỹ thuật rõ ràng chính xác nhất của hãng tại: VAN BI KITZ

- Thêm vào đó, Chúng tôi có Kho Hàng tại Hà Nội và Hồ Chí Minh và có Kho Hàng + Xưởng Sản Xuất với diện tích trên 2.000m2 tại Hà Nội.

- VINDEC với năng lực và kinh nghiệm trên 15 năm cùng với đội ngũ kỹ sư giầu chuyên môn, chúng tôi tự đáp ứng được các dự án lớn về hàng Van Công Nghiệp, chúng tôi luôn đồng hành cùng phát triển.
