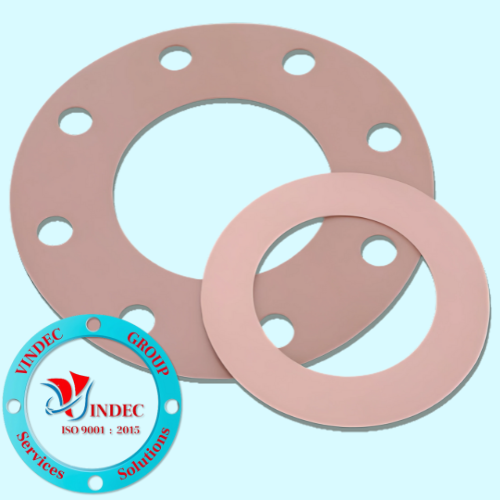

Bronze Filled PTFE Gasket Sheet

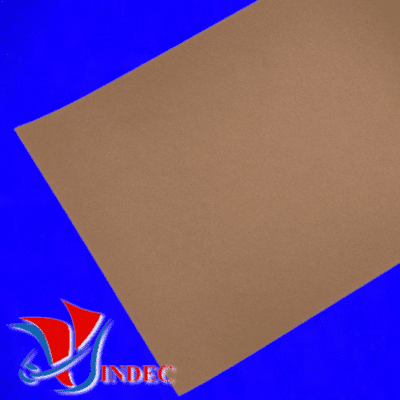

Bronze Filled PTFE Sheet

Bronze Filled PTFE is reinforced with bronze powder with the percentage varying between 40% and 60%, resulting in a very hard wearing material. It has weaker chemical resistance than other grades of PTFE and is not suitable for electrical applications.

The addition of Bronze to PTFE gives better dimensional stability and lowers creep, cold flow and wear. It increases hardness and compressive strength whilst also increasing thermal and electrical conductivity.

Bronze Common filled ratio ( Quantity %) 40%, 60%: Increases hardness and wear resistance; Increases dimensional stability and compressive strength

Technical 60% Bronze Filled PTFE Sheet

Density: 3.9 g/cm3

Tensile strength: 127 MPa

Elongation at break: 101%

Hardness: 33.8

Friction coefficient: 0.18 - 0.2

Bending strength: 280˚C

Thickness: 0.5, 1, 1.5, 2, 3, 4, 5 mm

Size gasket: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250,...

Sheet Width x Length: 1000 x 1000, 1200 x 1200mm, 1500 x 15000mm
