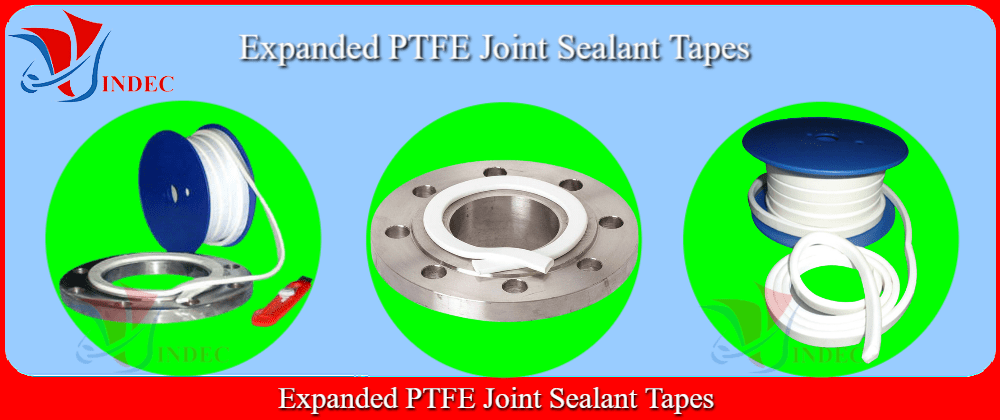

Expanded PTFE Joint Sealant Tapes
ePTFE Joint Sealant Tape
- Temperature range: -240℃ ~ +280℃
- Pmax: 150bar
- Width: 2 - 50mm
- Thickness: 1 -10mm
- Density: 0.7g/cm3 - 0.9g/cm3

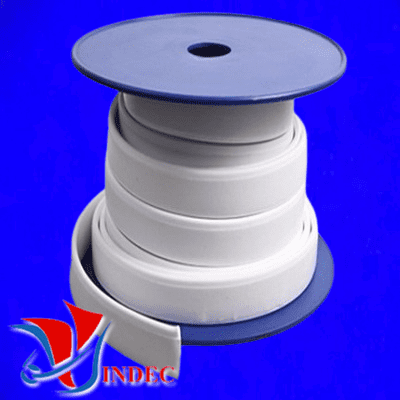

Expanded PTFE Joint Sealant Tape
What is Expanded PTFE Joint Sealant Tape
- expanded PTFE joint sealant is a soft, compressible gasket material made of 100% pure, expanded PTFE. It is a form-in-place gasket that conforms to almost any sealing surface.
- ePTFE Joint Sealant Tape is a very versatile gasket tape. These soft gasket tapes are highly compressible, allowing them to offer sealing along surfaces with even minor gaps and crevices.

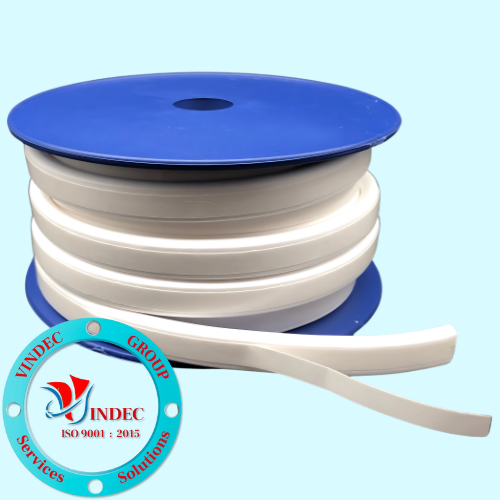

Technical Expanded PTFE Sealant Tape
- Media: Acids, alkalis, solvents, gases, etc.
- Temperature: -240 up to 260°C
- Pressure: 100 bar
- Tensile Strength: ≥8MPa
- PH-Value: 0 – 14
- Hardness: 30 - 70 HA
- Density Grade A/B: 0.70 / 0.80g/cm3
Key Features of Expanded PTFE Sealant Tape
- All kinds of pipeline flange surface seal, special for flange of which face work precision is bad, un-smooth region is big, the shape is irregular.
Application of Expanded PTFE Sealant Tape
- PTFE Sealant Tape is especially suite d for sealing flange connections, pipe systems, hydraulic and pneumatic systems, etc. In addition, it’s also ideal for seals in glass, enamel and plastic flanges, vessels and special shaped sealing surface.
- PTFE Sealant Tape saves money and time. Since there is no scrap or waste, it costs less than other gasket materials. By using only a few sizes, large inventories of sheet gasketing and costly precut gaskets can be eliminated. Installation time is kept to a minimum since there are no templates, precutting or special fitting requirements.
