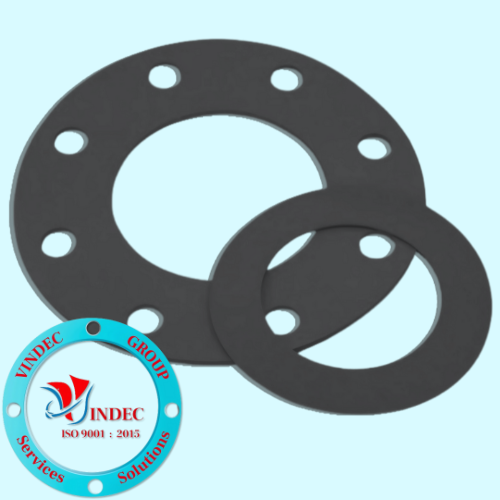

Graphite Filled PTFE Gasket Sheet

Graphite Filled PTFE Sheet

Excellent wear properties against soft metals;high load carrying capability in high speed contact applications; chemically inert

Material Type; reforcement filler plus PTFE: 5% - 25% graphite and 95% - 75% PTFE

Graphite Common filled ratio ( Quantity %) 5%, 10%, 15% : Improves the deformation under load; Reduces initial wear; Improves thermal and eletrical conductivity

Technical Graphite Filled PTFE Sheet

Name product: Graphite Filled PTFE Sheet

Density: 2.1 ~ 2.3 g/cm3

Pressure: Mpa

Temperaure: -180 to 260 ˚C

Thickness: 0.5, 1, 1.5, 2, 3, 4, 5, 6 mm

Size gasket: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250,...

Sheet Width x Length: 1000 x 1000, 1200 x 1200mm, 1500 x 15000, hoặc cuộn dài 15000mm, 20000mm

With 15% Glass Fiber 5% Graphite

Density: 2.22 g/m3

Tensile strength: 158 MPa

Elongation at break: 205 %

Hardness: 11.3

Friction coefficient : 0.15-0.17

Bending strength: 225 °C
