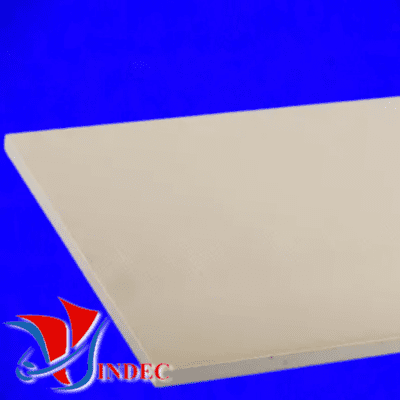

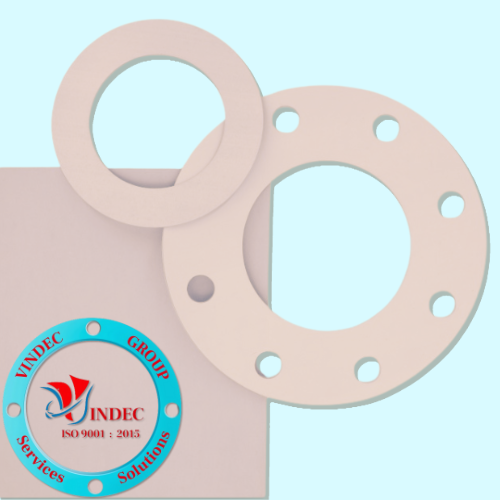

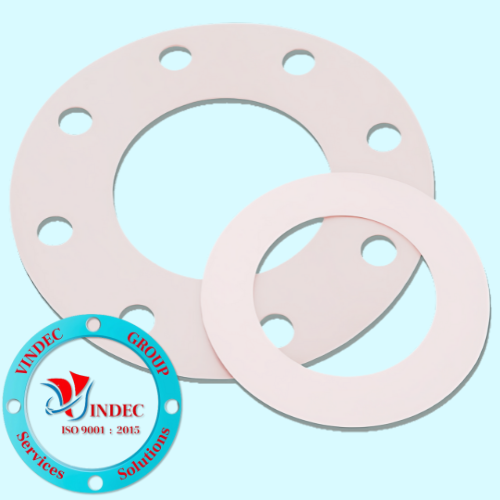

PEEK Filled PTFE Gasket Sheet

PEEK FILLED PTFE GASKET SHEET

PEEK Filled PTFE Gasket Sheet is a high-performance sealing material that combines the chemical resistance of PTFE with the mechanical strength of PEEK. It offers excellent wear resistance, low creep, dimensional stability, and reliable sealing for high pressure industrial applications.

TECHNICAL DATA

Material Composition: PTFE Filled with PEEK

Color: Yellow

Density: Approx. 2.10–2.30 g/cm³

Operating Temperature: -200°C to +260°C

Tensile Strength: Improved vs Virgin PTFE

Compressive Strength: High Load Resistance

Wear Resistance: Excellent

Coefficient of Friction: Low

Hardness (Shore D): 50 to 60

Thichness: 0.5, 1, 1.5, 2, 3, 4, 5, 6mm

Width x Length: 1000x1000,1500x 15000

Chemical Resistance: Excellent Against Most Chemicals

Typical Application: Sealing, Bearings, Wear Components
