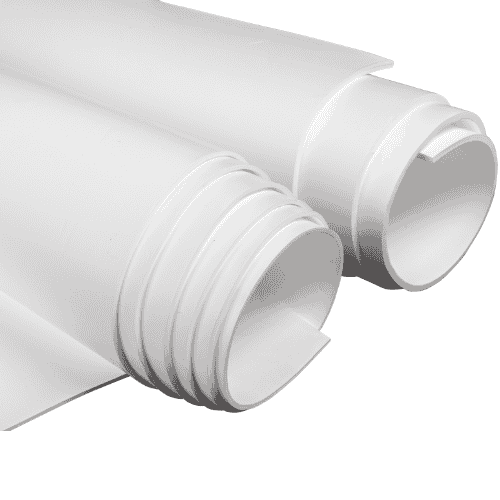

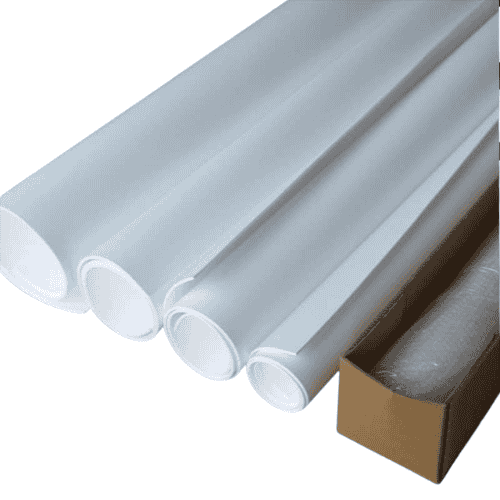

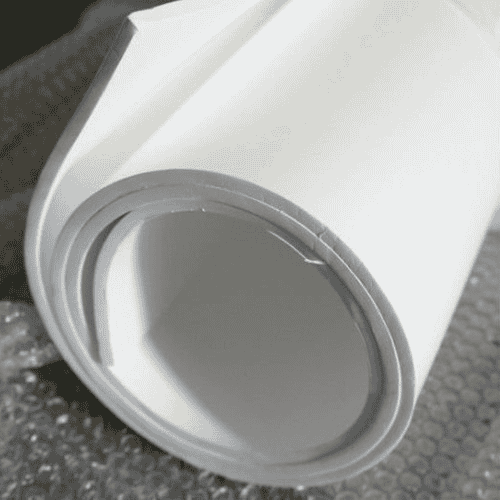

EXPANDED PTFE SHEET
Expanded PTFE gasket sheet is made of 100% expanded P.T.F.E. by using special process that produces a uniform and highly fibrillated microstructure with a great lot of fibers running in multidirection. These create a soft and pliable, yet very tough gasket that has excellent resistance of pressing, creep relaxation and cold flow.
Expanded PTFE Sheet is a high performance sheet gasket material made of multi-directionally expanded virgin PTFE. It is a soft, form-in-place gasket material that conforms to almost any sealing surface. It is capable of withstanding a wide range of pressure, temperature and chemical environments. Due to its highly fibrillated microstructure, it has excellent creep resistance compared with other PTFE products.
Expanded PTFE sheet possesses universal resistance against common chemicals, except melted alkali metal, fluorine at liquid and gas states. It can be stored without any time limits and can seal uneven and damaged flanges
TECHNICAL DATA
Gravity: 0.65~0.95g/cm³
Temperature range: -240 ~ 260°C
Length Tensile Strength: 17.0 MPa
Cross Tensile Strength: 17.0MPa
Compressive Strength : 17.0MPa
Max Compressive Strength: 17.0MPa
Compression: WXXJ 45% JB/T10688-2006 40%~50%
Recovery: WXXJ 15% JB/T10688-2006 > 10%
Leakiness (cm³/s): WXXJ 0.1~0.2x10-4 JB/T10688-2006 < 0.1x10-3
Thickness: 0.5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10 mm
Width x Length: 1000 x 1000, 1200 x 1200mm, 1500 x 15000, or 15000mm, 20000mm
KEY FEATURES
Full chemical resistance like solid sintered PTFE
Resistance against acids and bases of pH 0 to 14
UV-resistant
No aging, unlimited shelf life
Nontoxic, biologically inert
Non flammable
Best adaptation on uneven surfaces and affected sealing faces
For sealing of stress sensitive material like glass lined steel, glass, ceramic*
Long lasting gasket solution for extreme aggressive Media
APPLICATIONS
Suitable for use against: Acids, Alkalis, Corrosive Fluids, Oils, Solvents
For use in the following industries: Food, Beverage, Pharmaceutical, General, chemical, Petrochemical, Distillery, Marine, Iron and steel manufacturin, Power Generation, Paper, etc.
