PTFE (Teflon) Materials

nhua ptfe teflon

PTFE (TEFLON) PRODUCTS

What is PTFE Product

The exceptional strength of the carbon-fluorine bond and a high molecular weight give PolyTetraFluoroEthylene (PTFE), a set of outstanding properties. Such properties include wide temperature use range of -180°C to +250°C. PTFE is resistant to virtually all corrosive chemicals and is suitable for almost all chemicals with the exception of fluorine, some fluorochemicals and molten alkali metals. The material is also recognised as remarkable in its resistance to flame. It is classified as a non-flammable material in air.

- Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.
- PTFE has excellent properties and is widely used in industrial sealing, electronics, chemical and other fields. VINDEC provides a wide range of PTFE plates, rods, tubes, case and CNC machining products.

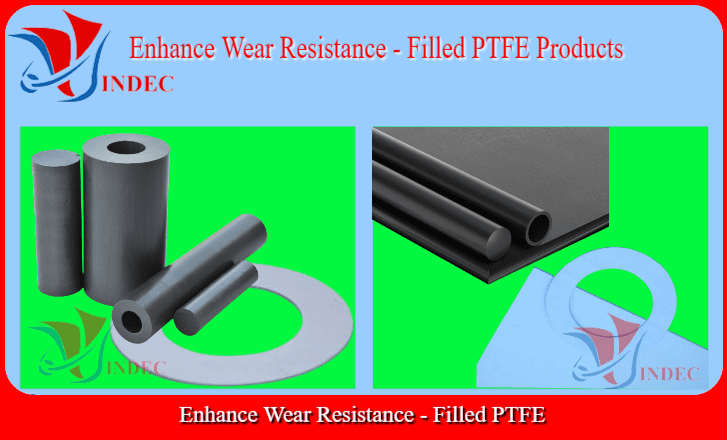

- Enhance Anti High Temperature- Filled PTFE product: Virgin PTFE and filled with Carbon, Carbon fiber or other materials.
- Skiving and mould.

- Virgin PTFE and filled with Glass fiber, Graphite, Carbon, Molybdenum disulfide or other materials.
- Skiving and molding.

Stainless Steel Filled PTFE is extremely hard wearing, has excellent strength and stability under extreme loads and elevated temperatures whilst still retaining the low coefficient of friction of conventional PTFE. It is an extremely versatile product and can be used on steam and thermal Fluid applications.

- Wear resistance, low friction, and creep reduction.
- Mechanical, such as piston ring, bridge groove, tube bearing pad, not suitable for electrical products.

- Strong wear resistance, small friction, small creep, excellent electrical performance.
- Mechanical and electrical applications, such as split bearings, valve seats..

- Wear resistance, low friction, high thermal conductivity.
- Mechanical, such as piston ring, bridge groove, tube bearing pad, not suitable for electrical products.

- Low coefficient of friction
- Antistick Properties
- Non-flammable
- Excellent dielectric propertie (independent of both frequency and temperature)
- Good mechanical properties (excellent fatigue resistance, especially in applications involving flexing or vibrations)
- Excellent tensile strength even at low temperature
- Non-aging properties
- Moisture and U.V. resistance
- Non-toxic.

Application of PTFE Products
