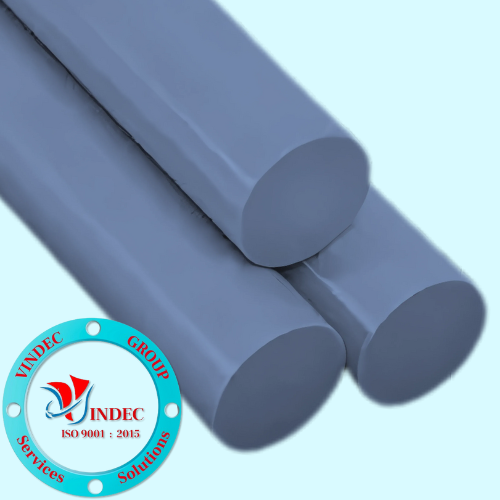

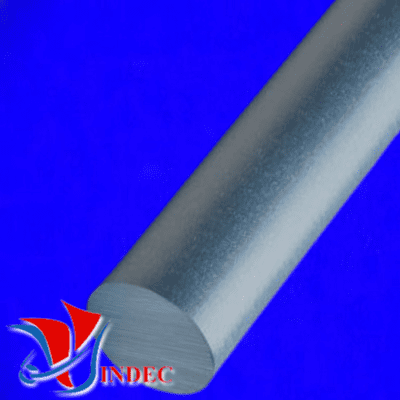

Ceramic Filled PTFE Rod

Ceramic Filled PTFE Rod

• Ceramic filled PTFE rods are made of a distinctive, mechanically stressed Ceramic filled PTFE compound with elastic behaviour and properties.
• It has outstanding tribological friction and wear characteristics compared to the glass filled PTFE, with reduced permeation producing less abrasive wear.
• The ceramic filled PTFE has low heat conductivity and chemical inertia of the alloyed metal.

Technical Ceramic Filled PTFE Rod

• - Colour: Grey
• - Density: 2.2 g/cm³
• - Tensile Strength: 17MPa
• - Elongation at Break: 150%
• - Temperature range: -180℃ to +260℃
• - Melting Point: 327℃
• - Dielectric Strength:  Kv/mm

Advantages of Ceramic Filled PTFE Rod

• - Good wear resistance
• - Chemically inert
• - Excellent tribological friction
• - Wear resistant

Application of Ceramic Filled PTFE Rod

• - Ceramic Filled PTFE Rod has the characteristics of high chemical resistance.
• - High insulation, non-stick.
• - Low friction and long life and low friction wear strips at high temperatures.
• - It is used by machine parts such as.
• - Terminals and other electrical parts.
• - Do not use in for food applications.
• - Hydraulic seals, Pneumatic seals, High-duty bearings.
• - Pump seals and shaft guides and Ball valve seats.

Diameter of Ceramic Filled PTFE Rod VINDEC

• - Ceramic Filled PTFE rod Ø6 mm
• - Ceramic Filled PTFE rod Ø8 mm
• - Ceramic Filled PTFE rod Ø10 mm
• - Ceramic Filled PTFE rod Ø15 mm
• - Ceramic Filled PTFE rod Ø20 mm
• - Ceramic Filled PTFE rod Ø30 mm
• - Ceramic Filled PTFE rod Ø40 mm
• - Ceramic Filled PTFE rod Ø50 mm
• - Ceramic Filled PTFE rod Ø60 mm
• - Ceramic Filled PTFE rod Ø70 mm
• - Ceramic Filled PTFE rods Ø80 mm
• - Ceramic Filled PTFE rod Ø90 mm
• - Ceramic Filled PTFE rod Ø100 mm
• - Ceramic Filled PTFE rod Ø120 mm
• - Ceramic Filled PTFE rod Ø150 mm
• - Ceramic Filled PTFE rod Ø200 mm
• - Ceramic Filled PTFE rod Ø250 mm
• - Ceramic Filled PTFE rod Ø300 mm
• - Ceramic Filled PTFE rod Ø350 mm
