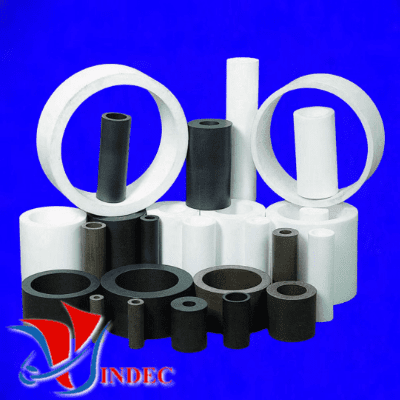

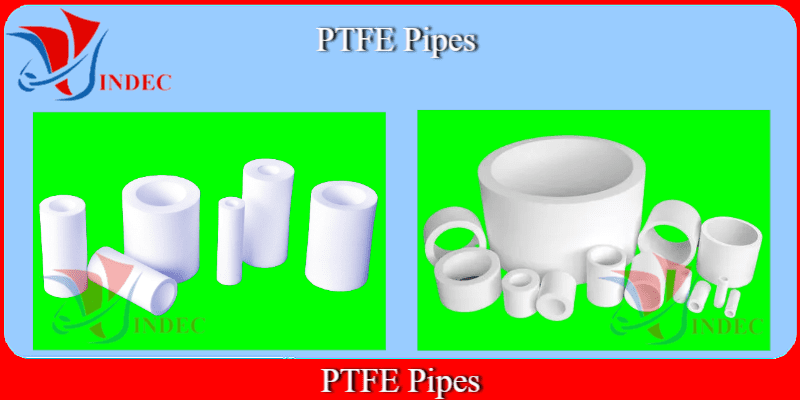

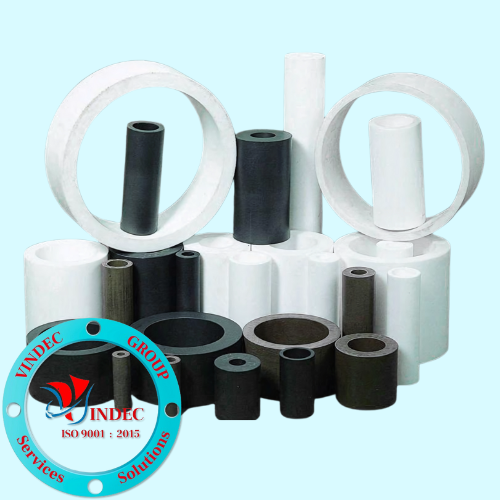

PTFE Pipes

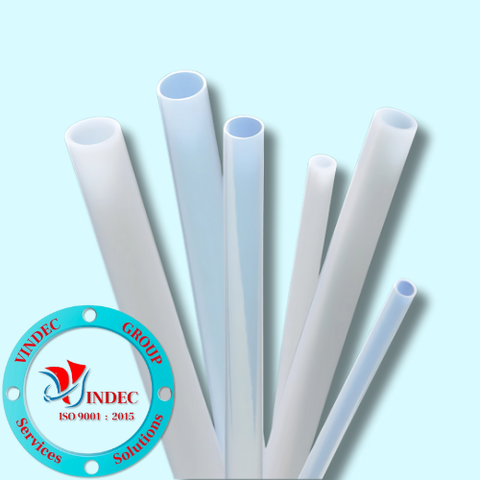

PTFE Pipe which are extensively used in chemical processing industry.
These tubes & pipes are appreciated for their unique features such as: Chemical resistance to all known chemicals, High temperature resistance, Insulation to electricity, Non-flammable
Density: ~2.43 g/cm3
Color : white, black....
Dia: 3 - 300 (standard)
Length: 300 - 4000 mm (standard), or in long length coils.
Temperature range: -80 to 260 Deg.C
PTFE Piping
Different Type Materials Filled PTFE Bushing

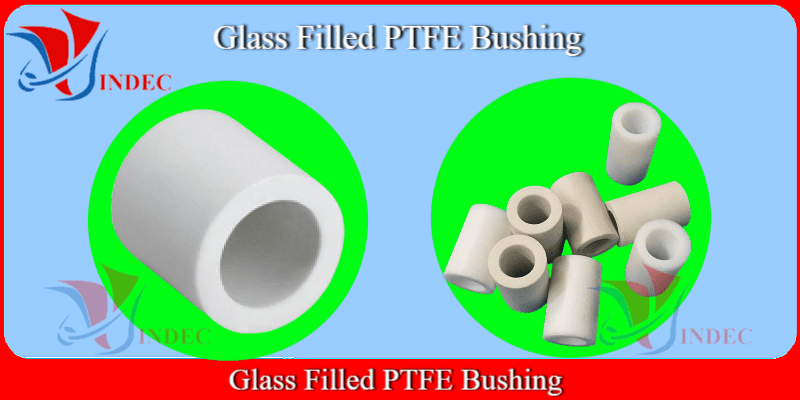

Glass Filled PTFE Bushing
Glass Filled PTFE Bushing

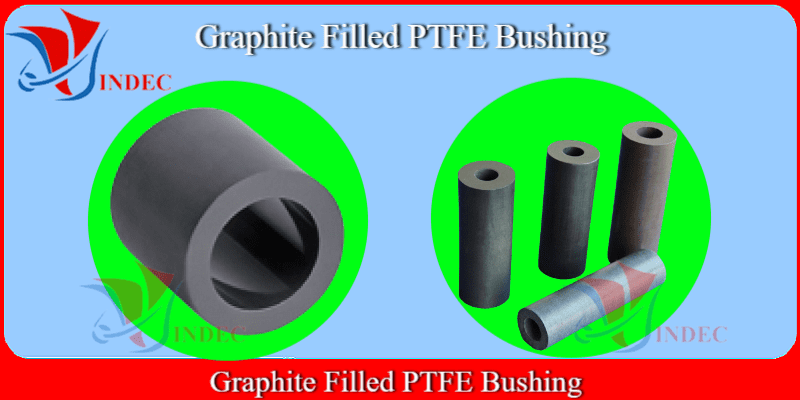

Graphite Filled PTFE Bushing: Graphite and PTFE for improved sliding and wear properties.
Graphite Filled PTFE Bushing

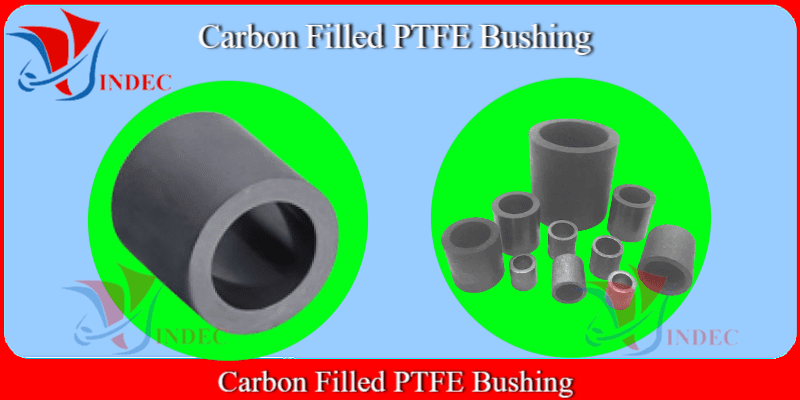

Carbon Filled PTFE Bushing: Carbon-filled PTFE bushings benefit from increased compressive strength, decreased deformation during heavy loads, and greater tolerance to wear than virgin PTFE.
Carbon Filled PTFE Bushing

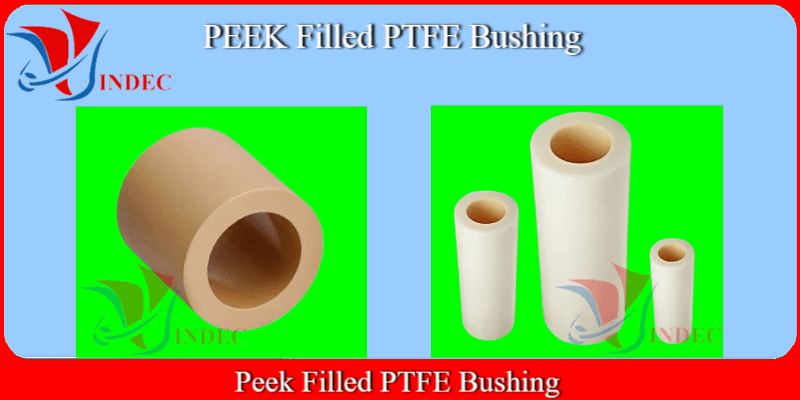

PEEK Filled PTFE Bushing: PEEK filler PTFE Bushing has a reduced thermal expansion rate and greatly improved thermal conductivity. PTFE as a base material has the main advantage of reducing the coefficient of friction while the tribological grade of PEEK improves its mechanical properties, but at the same time leaves the mixture with a relatively low friction coefficient.
PEEK Filled PTFE Bushing

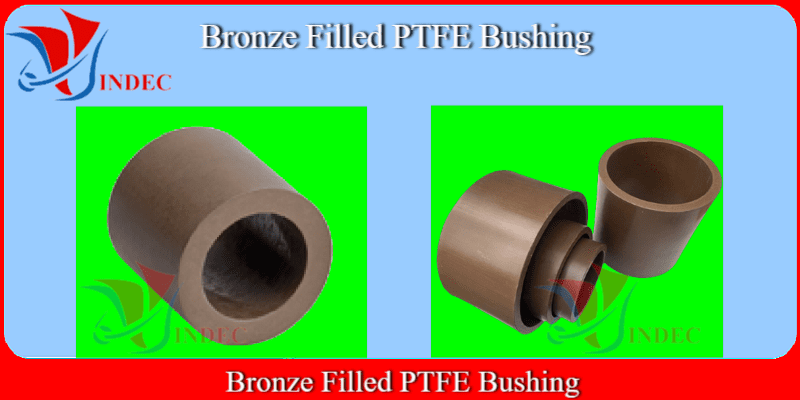

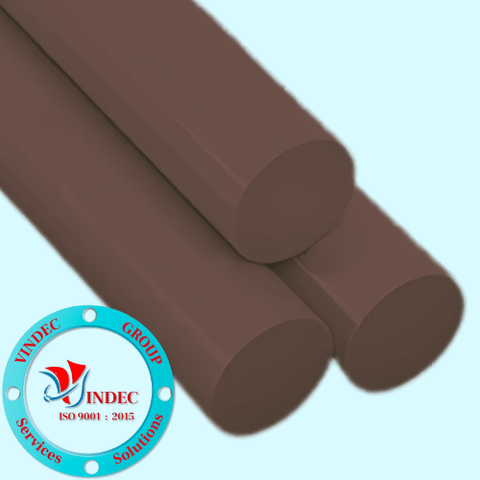

Bronze Filled PTFE Bushing: Bronze is the most popular metallic PTFE filler. Bronze is an alloy of copper and tin, so it is attacked by acids and bases. Also, bronze oxidizes during the sintering process, but this has no influence on the quality of the compound.
Bronze Filled PTFE Bushing
Key Features of PTFE Pipe
Excellent chemical resistance: PTFE Pipe is resistant to almost all chemicals and acids. As a result, PTFE tubes are often used in demanding environments such as chemical plants and oil and gas companies.
Large temperature range: PTFE Pipe has a very large workable temperature range. A pure PTFE Teflon tubcan withstand temperatures between – 190 ° C and + 260 ° C. The melting point of PTFE is even higher at + 327 ° C
Hydrophobic: PTFE Pipe is water resistant. It never gets wet. A PTFE tub is therefore suitable for allowing liquids to pass through. Consider, for example, a gasoline hose.
Very low coefficient of friction: PTFE Pipe has the lowest coefficient of friction of all plastics. This means that nothing really sticks to it. This is for example important with a PTFE tube for 3D printer, the filament goes through the tube as easily as possible / with as little friction as possible.
Greatest resistance to fatigue: PTFE tubes remain very strong after frequent bending and have the greatest resistance to fatigue (Wöhler Curves)
Not flammable: Where most plastics are flammable, PTFE Pipe is not flammable / extinguishing. This can also contribute to the fire safety of your product or plant.
FDA approval: The granulate used in our hoses is FDA approved, which means that it can come into contact with food.
Low dielectric constant: This means that the material has a very insulating effect. As a result, PTFE is often used in electrical applications.
Application of PTFE Pipe
Medical Tubing and R&D Labs

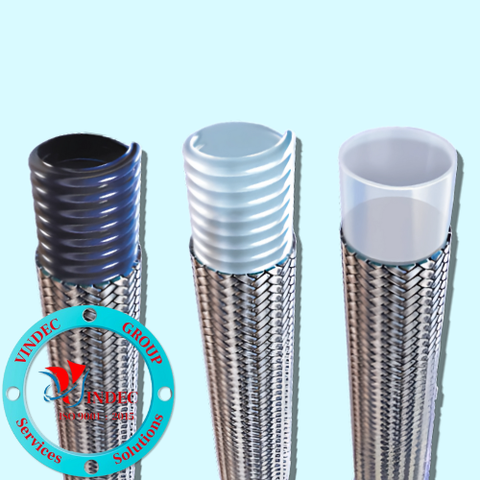

Lining In Flexible Hose Pipe Smooth Bore
Lining in Flow Meters
Making PTFE Drop Tube
Manufacturing PTFE Lined Dip Pipes
Manufacturing PTFE Lined Pipes
