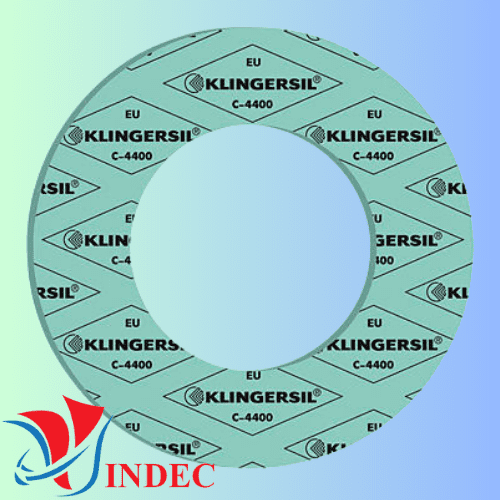

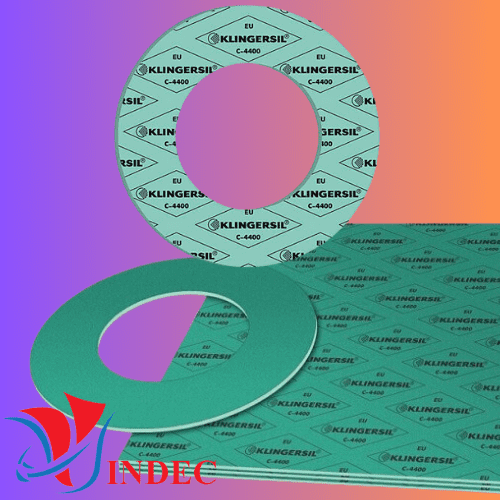

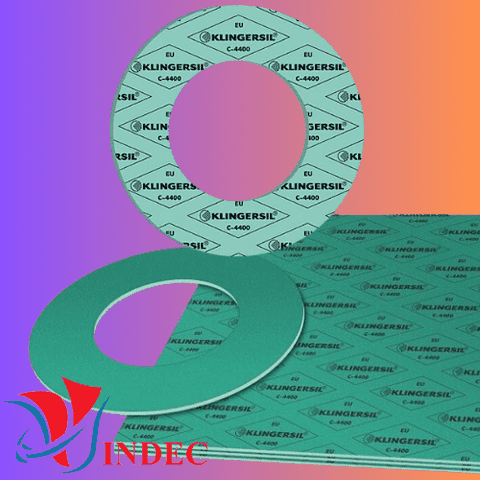

Non Asbestos Gasket Sheet KLINGERSIL® C-4400
• Material :
- Aramid fibre with NBR binder
• Technical Data :
- Good resistance to oils, fuels, hydrocarbons
- Very successful in internal combustion engine applications
- Available in sheet form and as cut gaskets
- 3xA anti-stick finish on both sides
• Typical Specifications :
- Colour : Green
- Compressibility (ASTM F36J) : 11%
- Recovery (ASTM F36J) : 55%
- Stress relaxation
+ DIN 52913: 50MPa, 16h/175°C : 32 N/mm²
+ DIN 52913: 50MPa, 16h/300°C : 25 N/mm²
+ BS 7531: 40MPa, 16h/300°C : 23 N/mm²
- Klinger hot/cold compression
+ Decrease in thickness at 23°C : 10%
+ Decrease in thickness at 300°C : 20%
- Gas leakage (DIN 3535/6) : < 0.02ml/min
- Thickness increase after immersion in:
+ Oil JRM 903, 5h/150°C : 3%
+ Fuel B, 5h/23°C : 5%
- Thermal conductivity:: 0.4-0.42W/mK
- Density : 1.6g/cm³
- Based on 2.0mm thick sample
• Applications :
- Used for oil, steam, hydrocarbons, oxygen and water
- Premium quality material for many industrial sealing applications
- Excellent resistance to hot water and steam.
• Tests and Certifications :
- BS 7531 Grade Y/ BS F 130 Type A / HTB / DIN-DGVW / BAM U W28 for use with oxygen 130bar/ 80 Bar / KTW / Germanischer Lloyd / TA-Luft (Clean Air) certificate acc. VDI 2440
• Dimension :
- Availability:: Sheeting (m): 2.0 x 1.5*, 4.0 x 1.5, 1.5 x 1.0 (* Denotes standard sheet size)
- Availability:: Thickness (mm): 0.4, 0.5, 0.75, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0mm

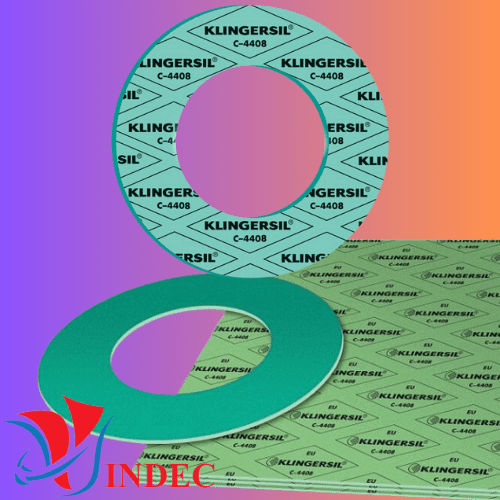

- Also available with re-inforcements: KLINGERsil C-4408, mild steel mesh
