KLINGER Top-Chem 2000

Liên hệ

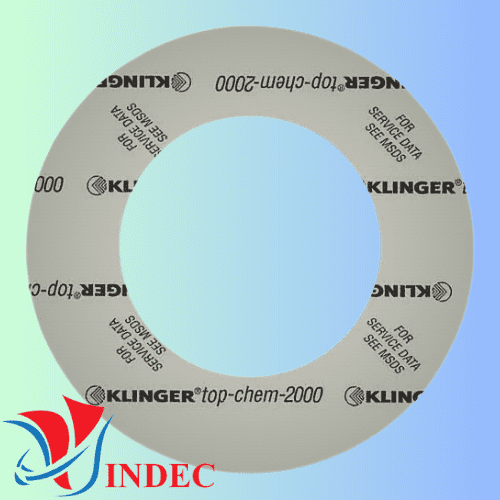

Non Asbestos Gasket Sheet KLINGERtop- chem-2000

• Material :

- Premium grade, heavy-duty modified PTFE

• Technical Data :

- Premium grade, heavy-duty PTFE gasket suitable for a wide range of applications within the chemical and petrochemical industries.

- The only PTFE based gasket material on the market to hold fire-safe approval

- Excellent sealing at high temperatures and pressures

- Ideal for aggressive chemicals

- Easy to handle and cut

- Fire-safe

- Creep resistant

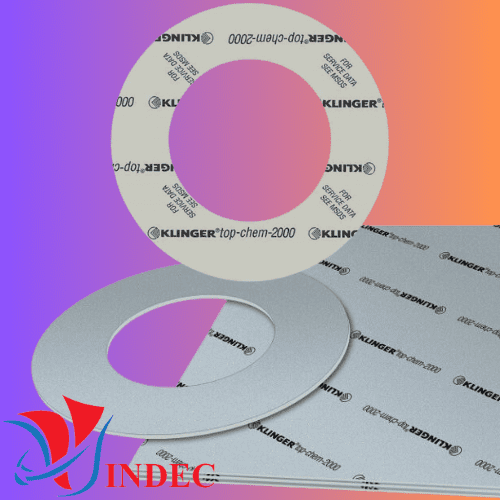

- Available in sheet form and as cut gaskets

- Anti-stick finish on both sides

• Typical Specifications :

- Colour : Grey

- Compressibility (ASTM F36J) : 2%

- Recovery (ASTM F36J) : 55%

- Stress relaxation

+ DIN 52913: 30MPa, 16h/150°C : 28 N/mm²

+ DIN 52913: 50MPa, 16h/300°C : 35 N/mm²

- Klinger hot/cold compression

+ Decrease in thickness at 23°C : 2%

+ Decrease in thickness at 300°C : 5%

- Gas leakage (DIN 3535/6) : < 0.5ml/min

- Thickness increase after immersion in:

+ H2 SO4 100%, 18h/23°C : 1%

+ HNO3 100%, 18h/23°C : 1%

+ NaOH 33%, 72h/110°C : 1%

- Density : 2.5g/cm³

- (Based on 1.5mm thick sample)

• Applications :

- Virtually all media up to temperatures of 260°C

- Ideal for aggressive chemicals, steam and oxygen applications.

• Tests and Certifications :

- Fire-safe API 6FA • BAM Approval for use with oxygen 100 bar / 200°C • KTW Approval • DIN DVGW • FDA Conformity • TA Luft Approval • Germanischer Lloyd • United States Coast Guard • Italiano Navale • Det Norske Veritas

• Dimension :

- Availability:: Sheeting (m): 1.5 x 1.5

- Availability:: Thickness (mm): 1.0, 1.5, 2.0, 3.0, 4.0, 5.0mm

ĐỒ THỊ PT DIAGRAM KLINGER TOP-CHEM 2000
