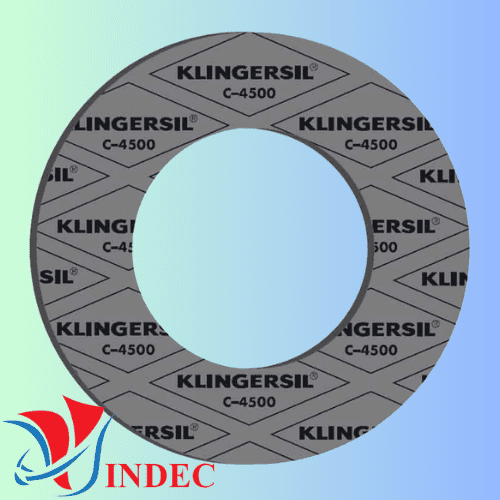

Non Asbestos Gasket Sheet KLINGERSIL® C-4500
• Material :
- Carbon fibre with NBR binder
• Technical Data :
- Good resistance to steam
- Good resistance to alkaline applications
- Excellent load-bearing characteristics
- Good resistance to oils, fuels, hydrocarbons

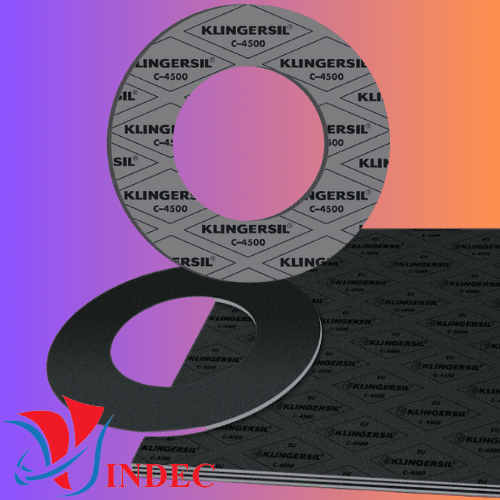

- Available in sheet form and as cut gaskets
- 3xA anti-stick finish on both sides
• Typical Specifications :
- Colour : Black
- Compressibility (ASTM F36J) : 12%
- Recovery (ASTM F36J) : 60%
- Stress relaxation
+ DIN 52913: 50MPa, 16h/300°C : 35 N/mm²
+ DIN 52913: 50MPa, 16h/300°C : 32 N/mm²
+ BS 7531: 40MPa, 16h/300°C : 30 N/mm²
- Klinger hot/cold compression
+ Decrease in thickness at 23°C : 10%
+ Decrease in thickness at 300°C : 15%
- Gas leakage (DIN 3535/6) : <0.1ml/min
- Thickness increase after immersion in:
+ Oil JRM 903, 5h/150°C : 3%
+ Fuel B, 5h/23°C : 5%
- Density : 1.6g/cm³
- Based on 2.0mm thick sample
• Applications :
- Used in a wide range of media including oils, hydrocarbons, alkalis and steam
• Tests and Certifications :
- BS 7531 Grade X / Firesafe API 6 FA, DIN ISO 10497 / DIN-DGVW / BAM U W28 for use with oxygen 160 bar / 85°C / KTW / Germanischer Lloyd / TA-Luft (Clean Air) certificate acc. VDI 2440
• Dimension :
- Availability : Sheeting (m): 2.0 x 1.5*, 4.0 x 1.5, 1.5 x 1.0 (* Denotes standard sheet size)
+ Availability: Thickness (mm): 0.4, 0.5, 0.75, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0mm
+ Available with expanded steel reinforcement : C-4509
+ Available with stainless steel reinforcement : C-4509L
ĐỒ THỊ PT DIAGRAM KLINGER C4500
