KLINGER Top-Graph 2000

Liên hệ

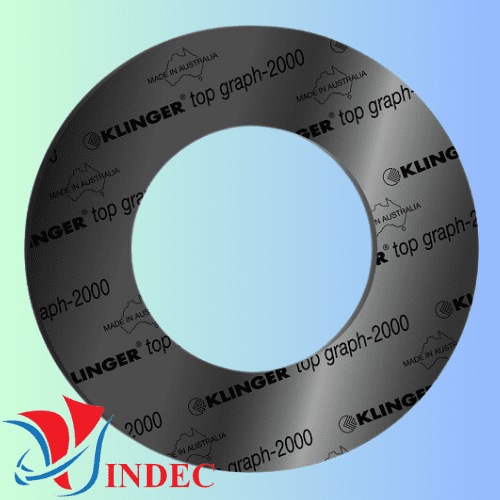

Non Asbestos Gasket Sheet KLINGERtop-graph-2000

• Material :

- Glass fibre with graphite and NBR binder

• Technical Data :

- A combination of expanded graphite and synthetic fibres to give a revolutionary sealing material with outstanding flexibility and excellent stability in steam

- Resistant to oils, fuels, hydrocarbons etc

- Easy to handle and cut

- Good leakage properties

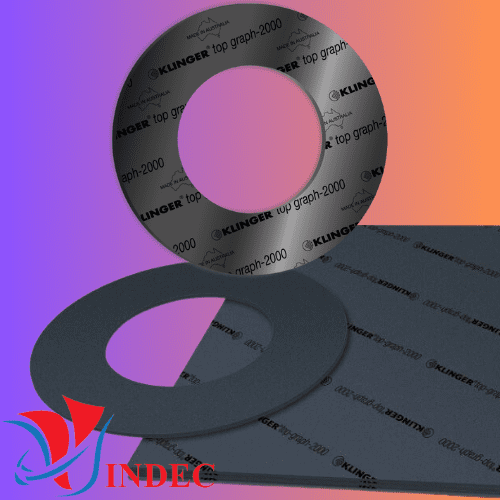

- Available in sheet form and as cut gaskets

- 3xA anti-stick finish on both sides

• Typical Specifications :

- Colour : Grey

- Compressibility (ASTM F36J) : 10%

- Recovery (ASTM F36J) : 60%

- Stress relaxation

+ DIN 52913: 50MPa, 16h/300°C : 35 N/mm²

- Klinger hot/cold compression

+ Decrease in thickness at 23°C : 10%

+ Decrease in thickness at 300°C : 10%

- Gas leakage (DIN 3535/6) : < 0.5ml/min

- Thickness increase after immersion in:

+ Oil JRM 903, 5h/150°C : 5%

+ Fuel B, 5h/23°C : 7%

- Density : 1.75g/cm³

- Based on 2.0mm thick sample

• Applications :

- Used for oil, steam, hydrocarbons, oxygen and water applications

- Premium quality material for many industrial sealing applications

- Excellent resistance to hot water and steam.

• Tests and Certifications :

- BS 7531 Grade X • DIN-DGVW • BAM UVV28 for use with oxygen up to 130 bar / 95°C • KTW Approvedf • SVGW 92-149-7 • Germanischer Lloyd 47-710 – 03 HH • TA-Luft (Clean Air) certificate acc. VDI 2440

• Dimension :

- Availability:: Sheeting (m): 2.0 x 1.5*, 4.0 x 1.5, 2.0 x 2.0, 1.5 x 1.0 (* Denotes standard sheet size)

- Availability:: Thickness (mm): 0.5, 0.75, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0mm



ĐỒ THỊ PT DIAGRAM KLINGER TOP-GRAPH 2000
