KLINGER C4430

Liên hệ

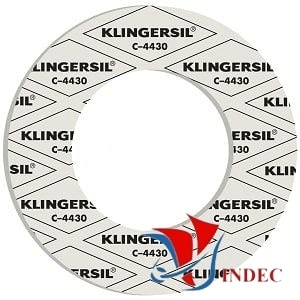

Non Asbestos Gasket Sheet KLINGERSIL® C-4430

• Material :

- Glass fibre with NBR binder

• Properties::

- Good steam resistance

- Resistant to oils, fuels, hydrocarbons etc

- WRAS approved for use in hot and cold potable water

- Fire-safe

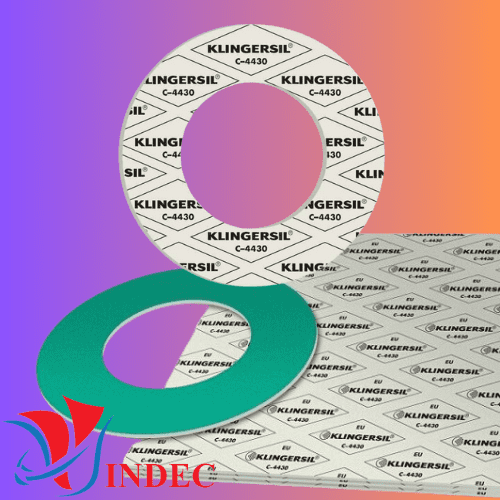

- Available in sheet form and as cut gaskets

- 3xA anti-stick finish on both sides

• Technical Data :

- Colour : Green- one side, white one side

- Compressibility (ASTM F36J) : 9%

- Recovery (ASTM F36J) : 50%

- Stress relaxation

+ DIN 52913: 50MPa, 16h/175°C : 39 N/mm²

+ DIN 52913: 50MPa, 16h/175°C : 39 N/mm²

+ DIN 52913: 50MPa, 16h/175°C : 39 N/mm²

- Klinger hot/cold compression

+ Decrease in thickness at 23°C 8%

+ Decrease in thickness at 300°C 11%

- Gas leakage (DIN 3535/6) : <0.1ml/min

- Thickness increase after immersion in:

+ Oil JRM 903, 5h/150°C : 3%

+ Fuel B, 5h/23°C : 5%

- Density : 1.75g/cm³

- Based on 2.0mm thick sample

• Applications :

- Used for oil, steam, hydrocarbons, oxygen and potable water applications

- Premium quality material for many industrial sealing applications.

- Excellent resistance to hot water and steam.

• Tests and Certifications :

- BS 7531 Grade X / Fire-safe BS 5146 / WRAS Approval / DIN-DGVW / BAM U W28 for use with oxygen 130bar / 90°C / KTW / Germanischer Lloyd / TA-Luft (Clean Air) certificate acc. VDI 2440

• Dimension :

- Availability:: Sheeting (m): 2.0 x 1.5*, 4.0 x 1.5, 1.5 x 1.0 (* Denotes standard sheet size)

- Availability:: Thickness (mm): 0.4, 0.5, 0.75, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0mm



ĐỒ THỊ P-T DIAGRAM KLINGER C4430
