KLINGER Top-Chem 2003

Contact

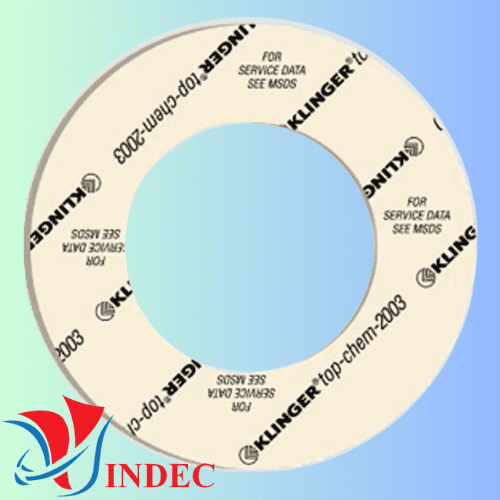

Non Asbestos Gasket Sheet KLINGER Top-Chem 2003

Material : Premium grade, high compressibility modified PTFE

P. Max: 140 kgf/m2

T. Max: 260 Deg.C

Applications : Ideal for aggressive chemicals, steam and oxygen applications.

Non Asbestos Gasket Sheet KLINGERtop-chem-2003

• Material :

- Premium grade, high compressibility modified PTFE

• Properties :

- Highly compressible, modified PTFE material with outstanding chemical resistance. Ideal for applications where bolt load is limited or where flanges are delicate e.g. glass-lined equipment.

- Excellent chemical resistance.

- Excellent sealability even at low bolt loads or temperatures.

- Ideal for non-metallic flanges and damaged sealing surfaces.

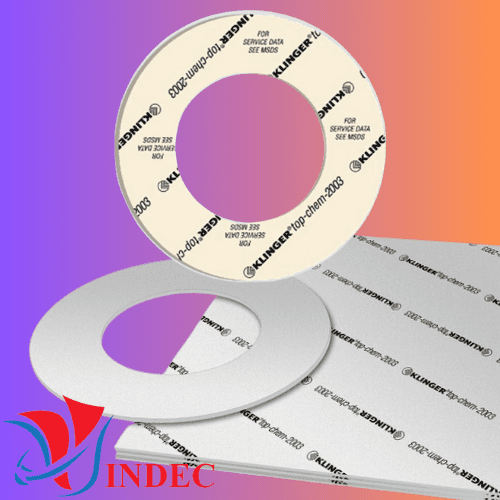

- Available in sheet form and as cut gaskets.

- Anti-stick finish on both sides

• Typical Specifications :

- Colour : Pale blue

- Compressibility (ASTM F36J) : 16%

- Recovery (ASTM F36J) : 35%

- Stress relaxation

+ DIN 52913: 30MPa, 16h/150°C : 13 N/mm²

- Klinger hot/cold compression

+ Decrease in thickness at 23°C, 25MPa : 9%

+ Decrease in thickness at 250°C, 25MPa : 38%

- Gas leakage (DIN 3535/6) : < 0.1ml/min

- Thickness increase after immersion in:

+ H2 SO4 , 100%, 18h/230°C : 1%

+ HNO3 , 100%, 18h/23°C : 0%

+ NaOH, 33%, 72h/110°C : 1%

- Density : 1.7g/cm³

- Based on 2.0mm thick sample

• Applications :

- Virtually all media up to temperatures of 260°C

- Excellent sealing performance at low surface stress, suitable for use in glass and rubber lined flanges

- Ideal for aggressive chemicals, steam and oxygen applications.

• Tests and Certifications :

- BAM Approval for use with oxygen 20 bar / 60°C • KTW Approval • DIN DVGW • FDA Conformity • Germanischer Lloyd • TA Luft Approval

• Dimension :

- Availability:: Sheeting (m): 1.5 x 1.5

- Availability:: Thickness (mm): 1.0, 1.5, 2.0, 3.0

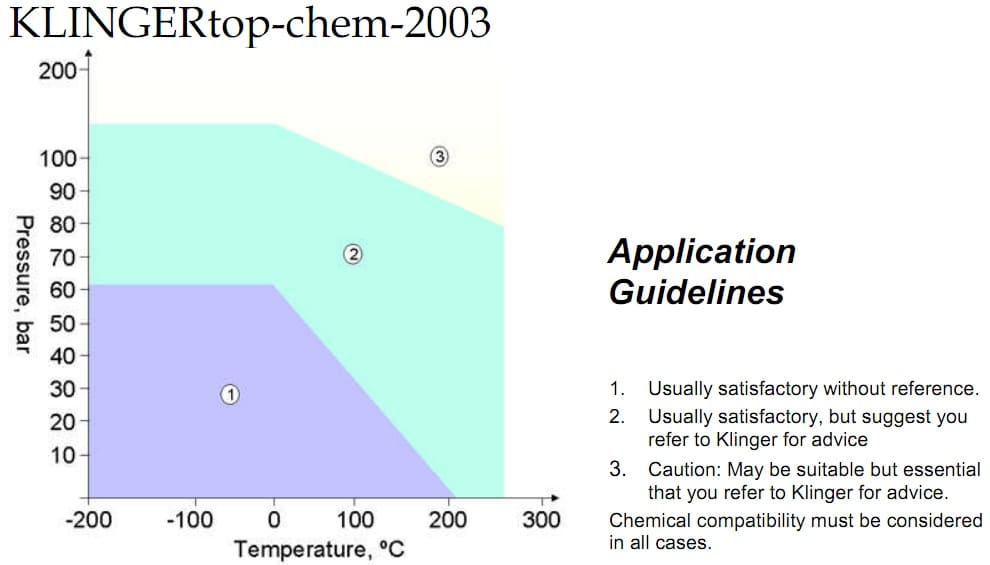

ĐỒ THỊ PT DIAGRAM KLINGER TOP-CHEM 2003
