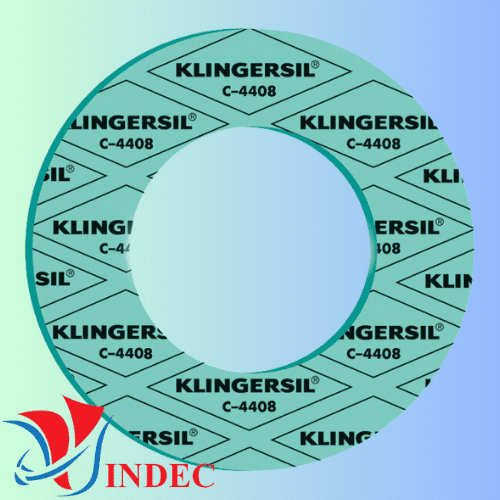

Non Asbestos Gasket Sheet KLINGERSIL® C-4408
• Material :
- Aramid & Glass fibre with NBR binder
• Technical Data :
- Good resistance to oils, fuels, hydrocarbons
- An economic grade for general industrial services

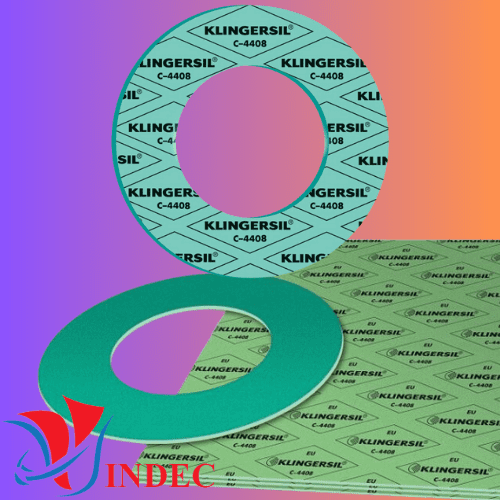

- Available in sheet form and as cut gaskets
- 3xA anti-stick finish on both sides
• Typical Specifications :
- Colour : Green one side, black one side
- Compressibility (ASTM F36J) : 12%
- Recovery (ASTM F36J) : 55%
- Stress relaxation
+ DIN 52913: 50MPa, 16h/300°C : 20 N/mm²
+ BS 7531: 40MPa, 16h/300°C : 23 N/mm²
- Klinger hot/cold compression
+ Decrease in thickness at 23°C 10%
+ Decrease in thickness at 300°C 25%
- Gas leakage (DIN 3535/6) : <0.1ml/min
- Thickness increase after immersion in:
+ Oil JRM 903, 5h/150°C 0-5%
+ Fuel B, 5h/23°C 0-10%
- Density : 1.85g/cm³
- Based on 2.0mm thick sample
• Applications :
- Used for oils, hydrocarbons, low-pressure steam and water applications.
• Tests and Certifications :
- BS 7531 Grade Y / DIN-DGVW / KTW / WRAS Approved / Germanischer Lloyd
• Dimension :
- Availability:: Sheeting (m): 2.0 x 1.5*, 4.0 x 1.5, 1.5 x 1.0 (* Denotes standard sheet size)
- Availability:: Thickness (mm): 0.4, 0.5, 0.75, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0mm
ĐỒ THỊ PT DIAGRAM KLINGER C4408
