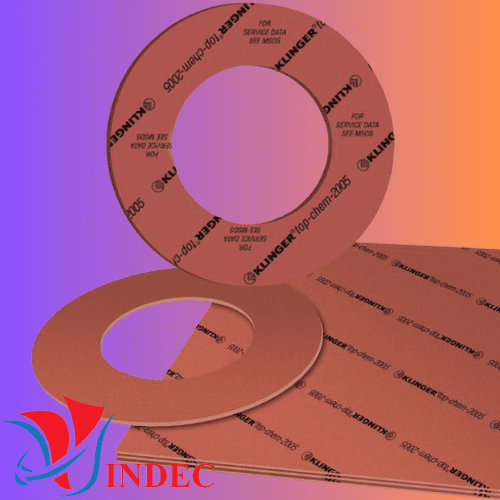

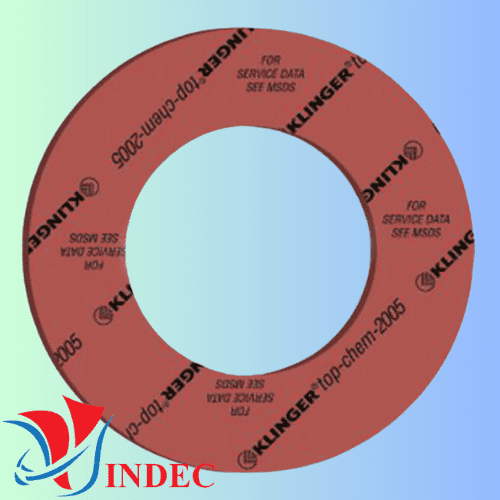

Non Asbestos Gasket Sheet KLINGERtop-chem-2005

• Material :

- Economical, modified PTFE

• Properties :

- Economical alternative to Top-Chem-2000

- Good mechanical properties at low to medium temperatures

- Very good chemical resistance

- Available in sheet form and as cut gaskets

- Anti-stick finish on both sides

• Typical Specifications :

- Colour : Brick red

- Compressibility (ASTM F36J) : 3%

- Recovery (ASTM F36J) : 40%

- Stress relaxation

+ DIN 52913: 30MPa, 16h/150°C : 25 N/mm²

- Klinger hot/cold compression

+ Decrease in thickness at 23°C, 50MPa : 10%
+ Decrease in thickness at 250°C, 50MPa : 30%

- Gas leakage (DIN 3535/6) : < 0.2ml/min

- Thickness increase after immersion in:

+ H2 SO4 , 100%, 18h/230°C : 1%

+ HNO3 , 100%, 18h/23°C : 1%

+ NaOH, 33%, 72h/110°C : Not Suitable

- Density : 2.2g/cm³

- Based on 1.5mm thick sample

• Applications :

- Ideal for strongly acidic environments

- Modified PTFE material with excellent chemical resistance and good mechanical properties. Suitable for a wide range of applications with the exception of strong alkaline conditions

- Ideal for aggressive chemicals, steam and oxygen applications.

• Tests and Certifications :

- BAM Approval for use with oxygen 100 bar / 200°C • KTW Approval • DIN DVGW • FDA Conformity • Germanischer Lloyd • TA Luft Approval

• Dimension :

- Availability:: Sheeting (m): 1.5 x 1.5m

- Availability:: Thickness (mm): 0.4, 0.5, 0.75, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0mm

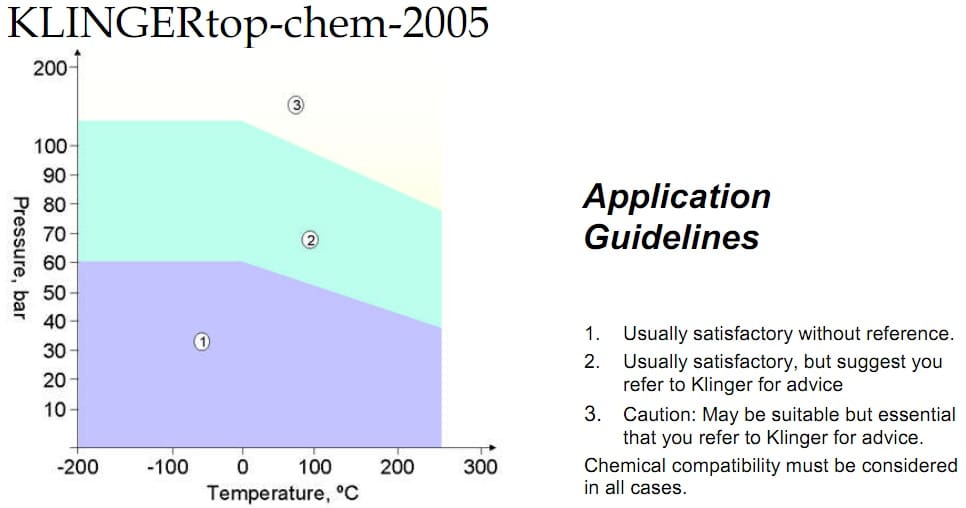

ĐỒ THỊ PT DIAGRAM KLINGER TOP-CHEM 2005
