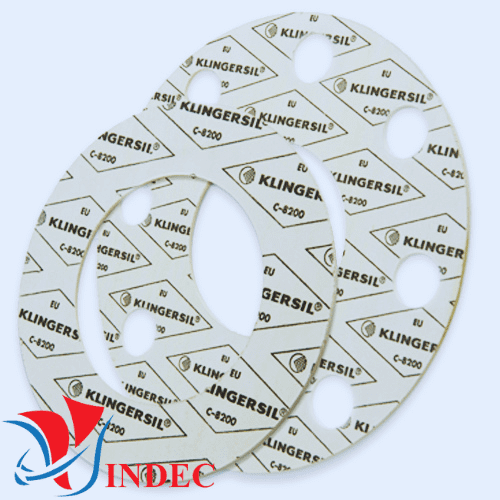

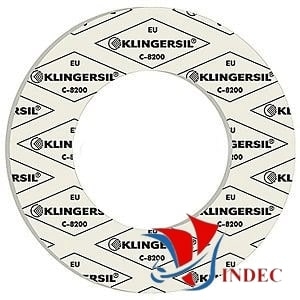

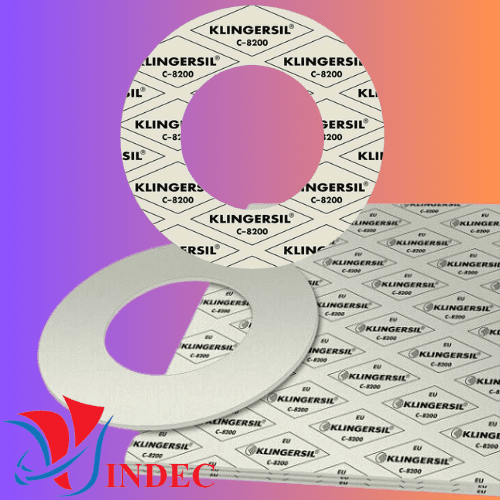

Non Asbestos Gasket Sheet KLINGERSIL® C8200
• Material :
- Glass fibre with Hypalon™ binder
• Properties :
- Resistant to most mineral acids
- Resistant to alkalis, ketones and aldehydes
- Resistant to many refrigerants
- Resistant to oils, fuels, hydrocarbons etc.
- Available in sheet form and as cut gaskets
- 3xA anti-stick finish on both sides
• Typical Specifications :
- Colour : Off-white
- Compressibility (ASTM F36J) : 9%
- Recovery (ASTM F36J) : 55%
- Klinger hot/cold compression
+ Decrease in thickness at 23°C : 7%
+ Decrease in thickness at 200°C : 17%
- Gas leakage (DIN 3535/6) : <0.1ml/min
- Thickness increase after immersion in:
+ Sulphuric acid 65%, 48h/25°C : 8%
+ Sulphuric acid 96%, 18h/25°C : 10%
+ Nitric acid 96%, 18h/25°C : Unsuitable
- Density : 1.7g/cm³
- Based on 2.0mm thick sample
• Applications :
- Used in a wide range of chemicals including many acids and alkalis, oils and fuels.
- Specialist grade designed for use with acids.
- Resistant to sulphuric and hydrofluoric acid.
• Tests and Certifications :
- BS 7531 Grade Y • Germanischer Lloyd • TŰV Poland • TA-Luft (Clean Air) certificate acc. VDI 2440
• Dimension :
- Availability:: Sheeting (m): Sheeting (m): 2.0 x 1.5*, 4.0 x 1.5, 2.0 x 2.0, 1.5 x 1.0 (* Denotes standard sheet size)
- Availability:: Thickness (mm): 0.5, 0.75, 1.0, 1.5, 2.0, 3.0mm
ĐỒ THỊ PT DIAGRAM KLINGER C8200
