KLINGER C-6327

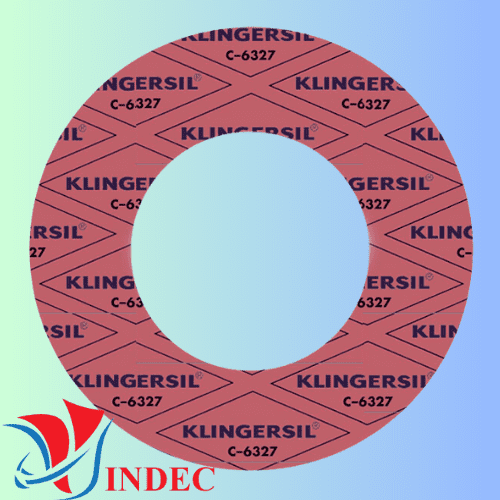

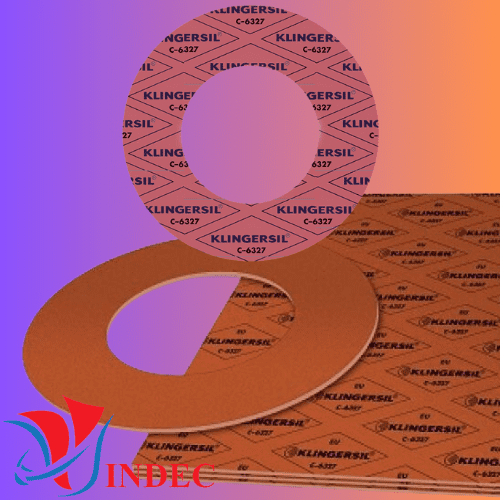

Non Asbestos Gasket Sheet KLINGERSIL® C-6327

• Material :

- Synthetic fiber reinforced with a modified SBR binder.

• Typical Values Refer to 1/16" Thick Material Unless Noted

- Creep relaxation ASTM F38B (1/32") : 35 %

- Sealability ASTM F37A (1/32") : < 0.2 ml/hr

- Gas Permeability DIN 3535/6  : < 0.5 ml/min

Compressibility ASTM F36J : 12 - 20 %

- Recovery ASTM F36J : 40 % minimum

- KLINGER Hot Compression Test

+ Thickness Decrease 73°F (23°C) : 16 % initial

+ Thickness Decrease 572°F (300°C) : 28 % additional

- Weight increase ASTM F146 after immersion in Fuel B, 5h/73°F (23°C) : 35 % maximum

- Thickness Increase ASTM F146 after immersion in

+ ASTM Oil IRM 901, 5h/300°F (149°C) : 0 - 10 %

+ ASTM Oil IRM 903, 5h/300°F (149°C) : 30 - 40 %

+ ASTM Fuel A, 5h/73°F (23°C) : 0 - 15 %

+ ASTM Fuel B, 5h/73°F (23°C) : 20 - 35 %

- Dielectric Strength ASTM D149-95a : 13 kV/mm

- Density ASTM F1315    100 lb/ft ³ (1.6 g/cc ³)

- Leachable Chloride Content FSA Method    150 ppm

- ASTM F104 Line Call Out    F714532B6E56K6M4

- Color : Black or white

• The pressure/temperature graphs shown are the most current method of determining the suitability of a gasket material in a known environment. However, chemical compatibility must also be considered.

ĐỒ THỊ PT DIAGRAM KLINGER C6327
