TEADIT TF 1590

Liên hệ

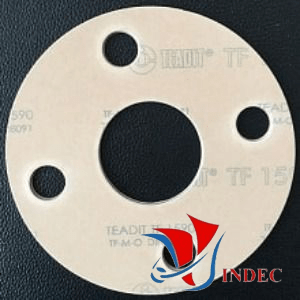

TEADIT TF1590 - Tấm Gioăng PTFE Mềm

  - Nhiệt độ hoạt động: -210°C đến+ 260°C
  - Phạm vi áp suất: chân không: 83bar
  - Độ dày: 1mm đến 3.2mm
  - Kích thước: 1500x1500
  - Ứng dụng: Làm kín mặt bích, vỏ mặt máy, thủy tinh

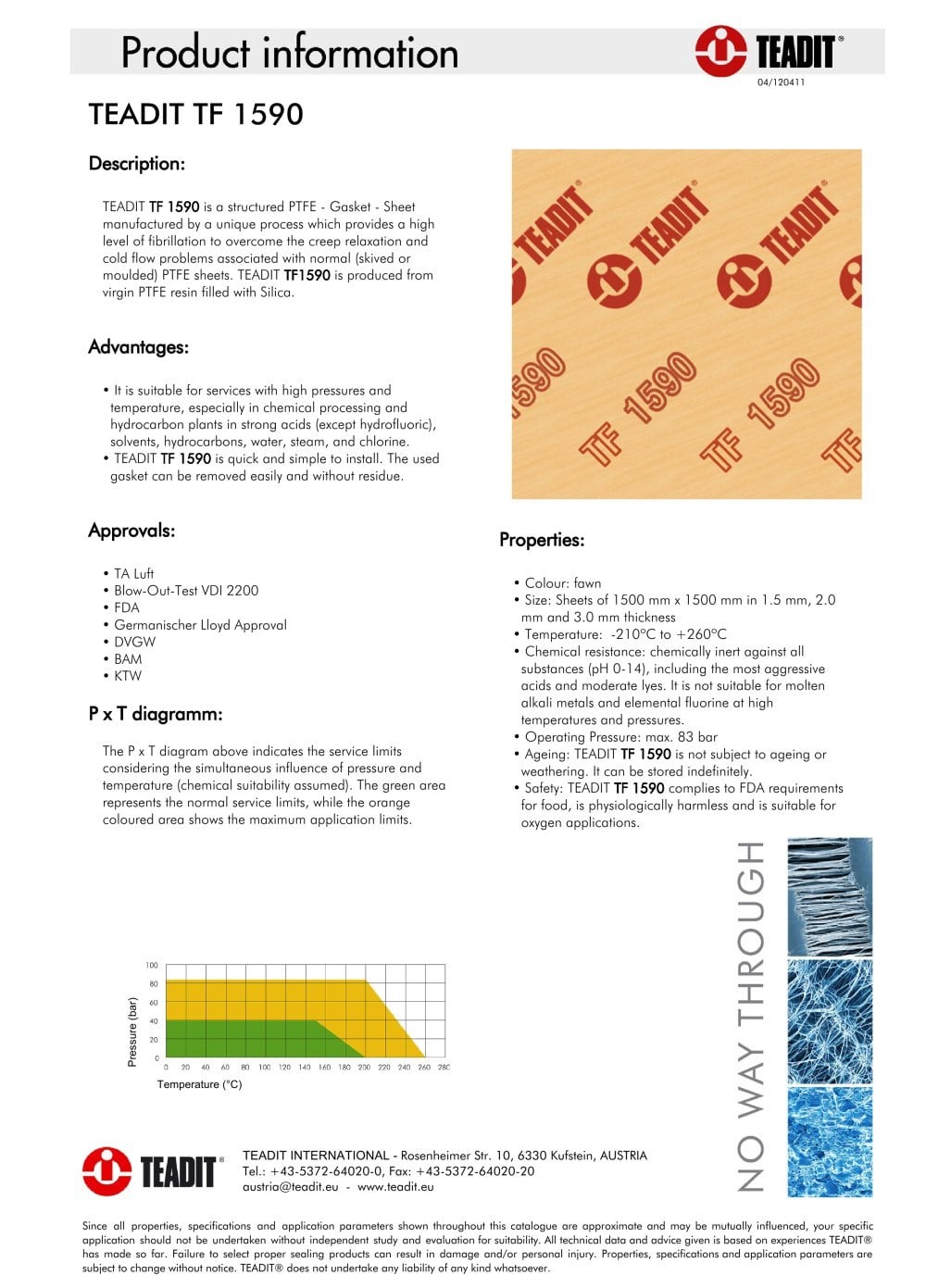

TEALON TF 1590Restructure PTFE with Silica

Test & Approvals:

ABS Product Type Approval - TF 1590

BAM - TF 1590

DVGW - TF 1590

FDA - SGS Institute - TF 1590

Fraunhofer Institut - TF 1590

HOBT - TF 1590

HOBT2 - TF 1590

ROTT - TF 1590

VDI 2200 - TF 1590

VDI 2440 - TA-Luft - TF 1590

Technical Data

- Temperature: -268 to 260 ºC

- Max. Pressure: 55 bar

- Sheet size: 1500 mm x 1500 mm

- Available Thickness: 1 mm up to 3,2 mm

- Components: PTFE with Silica

Description and Applications

- TEALON TF 1590 is a structured PTFE - Gasket - Sheet manufactured by a unique process which provides a high level of fibrillation to overcome the creep relaxation and cold flow problems associated with normal (skived or moulded) PTFE sheets. TEALON TF1590 is produced from virgin PTFE resin filled with Silica.

Advantages:

• It is suitable for services with high pressures and temperature, especially in chemical processing and hydrocarbon plants in strong acids (except hydrofluoric), solvents, hydrocarbons, water, steam, and chlorine.

• TEALON TF 1590 is quick and simple to install. The used gasket can be removed easily and without residue.
