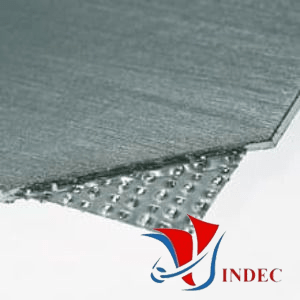

TEADIT GE-1520 - Gioăng Chì Graphite

  - Nhiệt độ làm việc thấp nhất: -240ºC đến 1.000ºC
  - Nhiệt độ làm việc liên tục: 450ºC
  - Nhiệt độ Steam: 650ºC
  - Áp suất hoạt động: 30 bar



TEADIT GE1520 SS 304 hoặc SS 316

DESCRIPTION and APPLICATIONS

- TEADIT expanded graphite sheets are produced from pure, expanded flexible graphite and do not contain any other fibers or filler materials.

PROPERTIES

- TEADIT expanded flexible graphite sheets are universally applicable for gases and fluids. They are chemically resistant against most media, have excellent thermal conductivity, can be stored indefinitely, do not need anti-stick coating and are extremely resistant to temperature cycles.

APPLICATIONS AREAS

- Because of its specific structure expanded graphite sheets are particularly suited for applications with extremely high or low temperatures, with highly corrosive and aggressive media and for gas and steam applications.

TEMPERATURE RANGE (ºC)

- Min.: -240 (ºC)

- Max.: 450 (ºC)

- Dampf bis 650 (ºC)

- in inerter Umgebung bis 1.000 (ºC)

PRESSURE

- Max. Pressure (bar): 30

DIMENSION

- Sheet Size    1.000 x 1.000 mm

- Thickness (mm)    1.0/1.5/2.0 and 3.0

TYPICAL PHYSICAL PROPERTIES

- Density (graphite): 1.00 ± 0.004 g/cm³

- Compressibility: 40 – 50 %

- Recovery: ≥10 %

- Carbon Content: ≥99 %

- Chloride Content: < 30 ppm

- Sulfur Content: ≤1000 ppm

- Torque Retention: >45 N/mm2

- Ash-Content: ≤1 %

- Tensile Stregth: ≥3.5 MPa

- pH Range: 0-14
