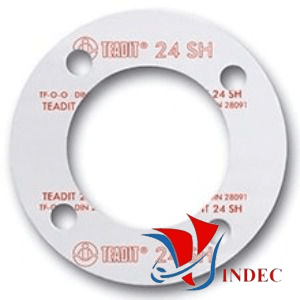

TEADIT 24SH - Tấm Gioăng PTFE Mềm

  - Nhiệt độ hoạt động: -240° C đến+ 260° C, tức thời đến: + 310° C
  - Phạm vi áp suất: chân không: 20MPa / 200bar.
  - Độ dày: 0,5mm đến 10mm
  - Kích thước: 1500 x 1500
  - Ứng dụng: Làm kín mặt bích, vỏ mặt máy, thủy tinh, ống gió...

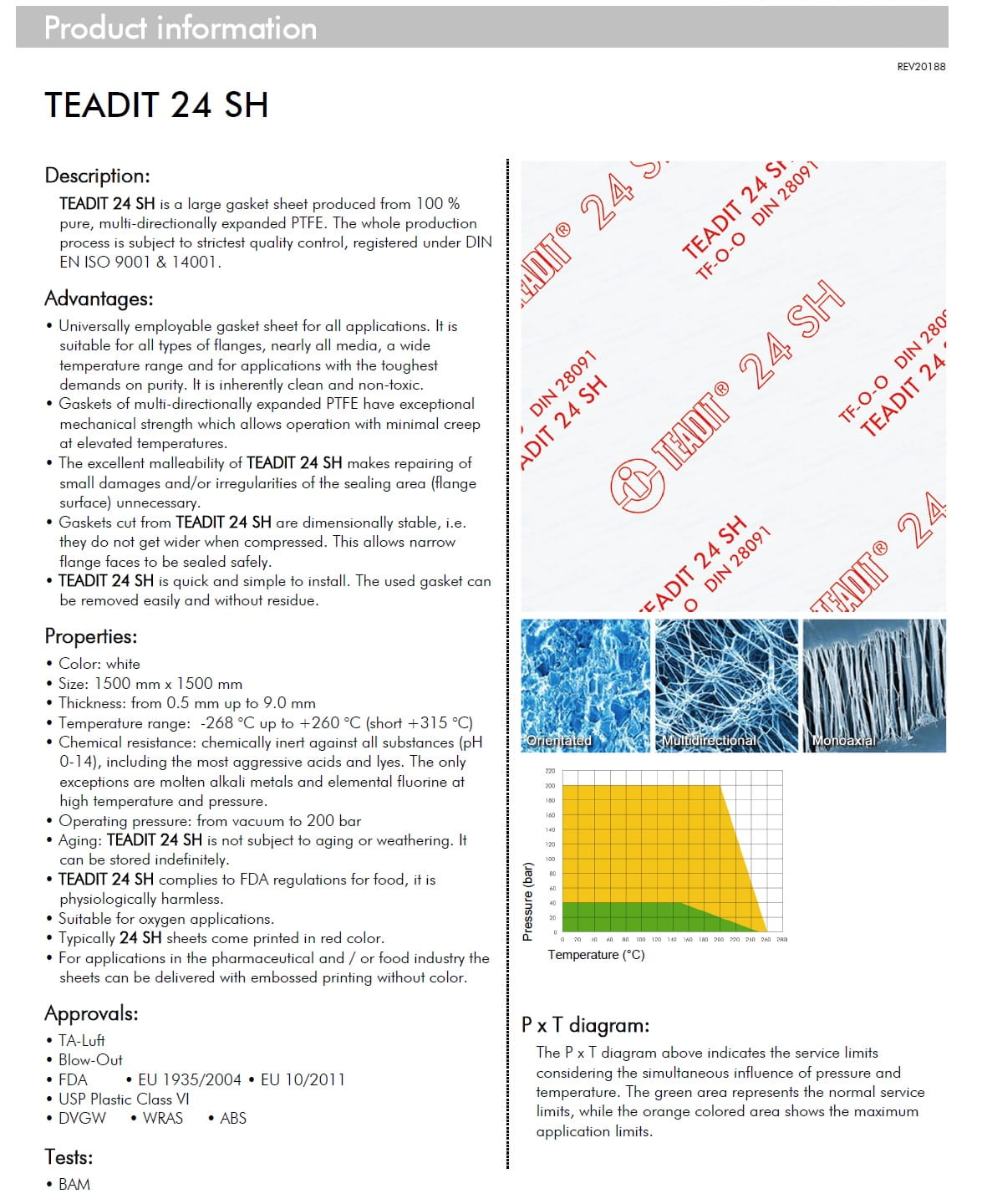

TEADIT 24 SH: 100 % ePTFE Gasket Sheet

Tests & Approvals

ABS Design Assessment - TEADIT 24 SH

ABS Product Type Approval - TEADIT 24 SH

BAM - TEADIT 24 SH

DVGW - TEADIT 24 SH

Fraunhofer Institut - TEADIT 24 SH

TA-Luft - VDI 2440 - TEADIT 24 SH

USP CLASS VI - TEADIT 24 SH

VDI 2200 - TEADIT 24 SH

WRAS - TEADIT 24 SH

Description and Applications

- TEADIT 24 SH is a large gasket sheet produced from 100 % pure, multi-directionally expanded PTFE. TEADIT maintains a quality and environmental management system that is certified according to DIN EN ISO 9001 and DIN EN ISO 14001.

Advantages:

• Universally employable gasket sheet for all applications. It is suitable for all types of flanges, nearly all media, a wide temperature range and for applications with the toughest demands on purity. It is inherently clean and non-toxic.

• Gaskets of multi-directionally expanded PTFE have exceptional mechanical strength which allows operation with minimal creep at elevated temperatures.

• The excellent malleability of TEADIT 24 SH makes repairing of small damages and/or irregularities of the sealing area (flange surface) unnecessary.

• Gaskets cut from TEADIT 24 SH are dimensionally stable, i.e. they do not get wider when compressed. This allows narrow flange faces to be sealed safely.

• TEADIT 24 SH is quick and simple to install. The used gasket can be removed easily and without residue.

Technical data

- Temperature range ºC : Min: -268 to Max: +260

- Pressure bar: from Vacuum to 200

- pH:  0 to 14

- Size (mm): 1500 x 1500mm

- Thickness (mm): from 0,5mm up to 6,0mm

-Color: White
