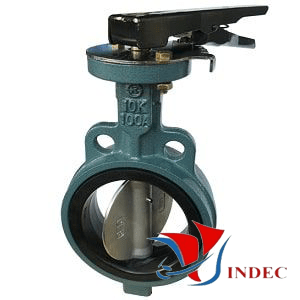

JOEUN Cast Iron Butterfly Valve Lever Type, 10K/PN16 Wafer
Body: Grey Cast Iron
Disc: Stainless steel
Seat: EPDM/NBR
Pressure working: Max. 10kgf/cm2
Temperature working: 120 Deg.C
Connection ends: 10K/PN16 Wafer ends
Media working: Water
Size: DN40 to DN200
JOEUN Cast Iron Butterfly Valve Gear Type, 10K/PN16 Wafer
Body: Grey Cast Iron
Disc: Stainless steel
Seat: EPDM/NBR
Pressure working: Max. 10kgf/cm2
Temperature working: 120 Deg.C
Connection ends: 10K/PN16 Wafer ends
Media working: Water
Size: DN50 to DN350
JOEUN Stainless Steel Butterfly Valve Lever Type, 10K/PN16 Wafer
Body: Stainless steel
Disc: Stainless steel
Seat: PTFE
Pressure working: Max. 10kgf/cm2
Temperature working: 200 Deg.C
Connection ends: 10K/PN16 Wafer ends
Media working: Water
Size: DN40 to DN200
JOEUN Stainless Steel Butterfly Valve Gear Type, 10K/PN16 Wafer
Body: SS 304
Disc: Stainless steel
Seat: PTFE
Pressure working: Max. 10kgf/cm2
Temperature working: 200 Deg.C
Connection ends: 10K/PN16 Wafer ends
Media working: Water, Steam, Air
Size: DN50 to DN300
