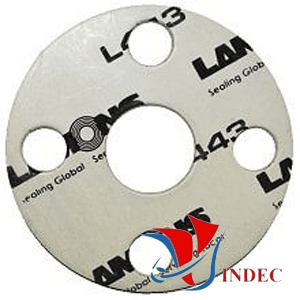

LAMONS L443

Non Asbestos Gasket Jointing Sheets LAMONS - L443

- L443 is a premium sheet gasket material with a reinforcement structure consisting of glass and aramid fibers bound together with a high-quality nitrile rubber binder.

- Addition of glass fiber gives L443 excellent steam resistance.

- It features excellent sealing ability and high resistance to creep, making it effective for stronger acids and alkalis, inert gases, general chemicals, oils and fuels, and petroleum.

Technical Data

- Density: 1.6 g/cm3

- Cường lực kéo: 10 Mpa

- Max. Continuous Temp: 250 độ C

- Max.Peak Temp: 425 độ C

- Max. Pressure: 80 Bar

Dimension

- Thickness: 0.5, 1, 1.5, 2, 3, 4, 5mm

- Width x Length : 1500 x 1500 mm

- Gia công theo các dạng tiêu chuẩn ANSI, JIS, DIN, BS…Và các dạng phi tiêu chuẩn theo yêu cầu.

Certificate:

- Chứng chỉ không amiăng của SGS, DNV-GL, TA-Luft, ABS, API 607 Fire Safe, CO & CQ
