YNV - Pressure Reducing Valves

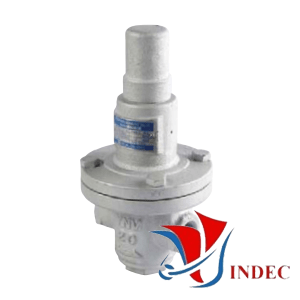

YNV Ductile Iron Pressure Reducing Valve Threaded Ends

Body: Ductile Iron

Disc & Seat: Inox 304

Trim: Stainless Steel, synthetic rubber

Max. Pressure : 10 kgf/cm2

Outlet Pressure: 0.5 - 7 kgf/cm2

Max. Temperature: 80 Deg.C

Media working: Water, Air

Connection ends: PT Screwed ends

size: 15A to 40A

Model: DRE-1S

YNV Ductile Iron Pressure Reducing Valve Threaded Ends

Body: Ductile Iron

Disc & Seat: Inox 304

Trim: Stainless Steel

Max. Pressure : 10 kgf/cm2

Outlet Pressure: 0.5 - 7 kgf/cm2

Max. Temperature: 220 Deg.C

Media working: Steam

Connection ends: PT Screwed ends

size: 15A to 250A

Model: PIR-1S

YNV Ductile Iron Pressure Reducing Valve JIS 10K Flanged Ends

Body: Ductile Iron

Disc & Seat: Inox 304

Trim: Stainless Steel

Max. Pressure : 10 kgf/cm2

Outlet Pressure: 0.5 - 7 kgf/cm2

Max. Temperature: 220 Deg.C

Media working: Steam

Connection ends: JIS10K Flanged ends

size: 15A to 250A

Model: PIR-1F

YNV Ductile Iron Pressure Reducing Valve Jis 10K Flanged Ends

Body: Ductile Iron

Disc & Seat: Inox 304

Trim: Stainless Steel, synthetic rubber

Type: Diaphragm type

Max. Pressure : 10 kgf/cm2

Outlet Pressure: 0.5 - 7 kgf/cm2

Max. Temperature: 80 Deg.C

Media working: Water, Air

Connection ends: Jis 10K Flanged ends

size: 15A to 150A

Model: DRE-1F
