3 Way Stainless Steel Electric Actuator Flanged Ends

Contact



Van Bi 3 Ngã INOX Điều Khiển Điện 220V Lắp Mặt Bích

Vật liệu: Thân - INOX, Bi - INOX, Vòng đệm - PTFE
Lắp đặt: Mặt Bích
Ứng dụng: Khí nén, Nước, Xăng dầu, Gas...

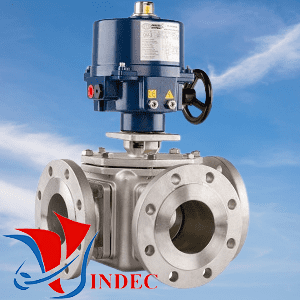

3 Way Stainless Steel Electric Actuator Flanged Ends

Van Bi 3 INOX Ngả Điều Khiển Điện 220V Lắp Mặt Bích

High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and an electric actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Powder coated die aluminium electric actuator with visual indicator, extra limit switches and a manual override. Typical applications include water treatment, chemical, marine, petrochemical and general industry.



FEATURES

Size: 15mm to 200mm
Body: 316 Stainless Steel
Seat: RPTFE
Pressure: 20 BAR @ ambient
Temperature: -10°C to 180°C
Actuation: Electric

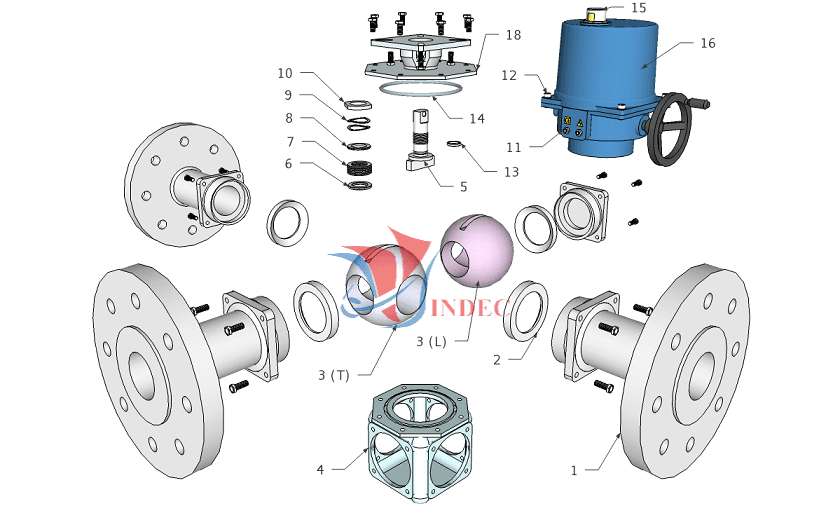

CẤU TẠO VAN 3 NGẢ



Number Item Material
1 Flanged End CF8M
2 Seat Reinforced PTFE
3 Ball ASTM A182 316
4 Body ASTM A351 CF8M
5 Shaft ASTM A276 316
6 Thrust Washer SS201
7 Chevron Packing PTFE
8 Shaft Seal Oring Viton
9 Belleville Washers SS201
10 Retaining Nut SS304
11 Conduit Entry Powder coated Aluminium
12 Screw SS316
13 Shaft Seal Viton
14 Cap Gasket PTFE
15 Indicator Metal/Polycarbonate
16 Actuator Body Powder coated Aluminium
18 Bonnet ASTM A351 CF8M
