KSB Check Valves Germany | Van 1 Chiều KSB Đức

KSB BOA-R

KSB Check Valves

- KSB check valves including: Lift check valve to DIN/EN with flanged ends / threaded ends, butt weld or socket weld ends and Swing check valve to DIN/EN with flanged ends / threaded sockets (NPT), butt weld ends (BW) or socket weld ends (SW), wafer-type...

_________________________________________

Technical KSB Check Valve

- Types of Ksb check valve: KSB Lift check valve and KSB Swing check valve

- Materials of Ksb check valve: Cast iron, Ductile iron, Cast steel, Stainless steel, cast steel A351 CF8/CF8M, forged steel A105

- Disc of Ksb check valve: Stainless steel...

- Stem of Ksb check valve:Stainless steel...

- Pressure range: PN10, PN16, PN25, PN40, PN63, PN100, PN160

- Temperature range: up to 450 độ C

- Connections of Ksb check valve: threaded ends, Flanged ends, Welding end...

- Size of Ksb check valve: DN25, DN32, DN40, DN15, DN20, DN50, DN100, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350

- Origin: KSB germany

Types of KSB Valves

KSB Lift check valve and KSB Swing check valve

_________________________________________

KSB Lift Check Valve

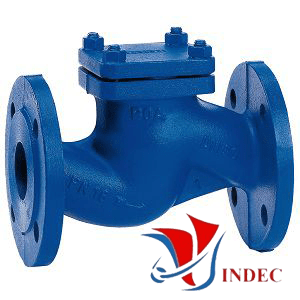

- KSB BOA-R : Lift check valve to DIN/EN with flanged ends, spring-loaded valve disc, maintenance-free.

- KSB BOA-RFV : Nozzle check valve to DIN/EN with flanged ends, Venturi-type body, max. flow velocity 2.5 m/s, Body made of cast iron

- KSB BOA-RPL : Ball check valve to DIN/EN with flanged or female/female-threaded ends, made of nodular cast iron

- KSB BOA-RVK : Lift check valve to DIN/EN with wafer-type body, centring aided by the body shape, shut-off by spring-loaded plate or valve disc guided by three stainless steel guiding pins.

- KSB BOACHEM-RXA : Lift check valve to DIN/EN with flanged ends, body made of stainless steel, check disc with closing spring, lapped seat/disc interface.

- KSB ECOLINE PTF 150-600 : Lift check valve to ANSI/ASME with flanged ends, forged steel A105.

- KSB ECOLINE PTF 800 : Lift check valve to ANSI/ASME with threaded sockets (NPT), butt weld ends (BW) or socket weld ends (SW).

- KSB NORI 160 RXL/RXS : Lift check valve to DIN/EN with flanged ends (RXL), butt weld ends or socket weld ends (RXS).

- KSB NORI 40 RXL/RXS : Lift check valve to DIN/EN with flanged ends (RXL), butt weld ends or socket weld ends (RXS).

- KSB NUCA 320/-A 320/-ES type V : Lift check valve for nuclear applications, with butt weld ends.

- KSB RGS : Lift check valve to DIN/EN with butt weld or socket weld ends, Y-pattern, check disc with closing spring.

- KSB RXN/RYN : Combined lift check/shut-off valve with butt weld ends, for nuclear applications, Y-pattern.



_________________________________________

KSB Swing Check Valve

- KSB AKR/AKRS : Swing check valve to DIN/EN with flanged ends (AKR) or butt weld ends (AKRS)

- KSB COBRA-TDC01/03 : Tilting disc check valve to DIN/EN with flanged ends

- KSB ECOLINE SCC 150-600 : Swing check valve to ANSI/ASME with flanged ends, cast steel A216 WCB

- KSB ECOLINE SCF 150-600 : Swing check valve to ANSI/ASME with flanged ends, forged steel A105

- KSB ECOLINE SCF 800 : Swing check valve to ANSI/ASME with threaded sockets (NPT), butt weld ends (BW) or socket weld ends (SW)

- KSB SERIE 2000 : Dual-plate check valve with single-piece, wafer-type body made of lamellar graphite cast iron, nodular cast iron, steel or stainless steel

- KSB SICCA 150-600 SCC : Swing check valve to ANSI/ASME with flanged or butt weld ends

- KSB SICCA 900-3600 SCC : Swing check valve to ANSI/ASME with butt weld ends or flanged ends (on request)

- KSB SISTO-RSK : Swing check valve to DIN/EN with flanged ends, in straight-way pattern

- KSB SISTO-RSKNA : Swing check valve with flanged ends, body with or without lining, soft-seated

- KSB SISTO-RSKS : Swing check valve to DIN/EN with flanged ends, short face-to-face length

- KSB STAAL 100 AKK/AKKS : Swing check valve to DIN/EN with flanged ends (AKK) or butt weld ends (AKKS)

- KSB STAAL 40 AKK/AKKS : Swing check valve to DIN/EN with flanged ends (AKK) or butt weld ends (AKKS)

- KSB ZRN : Swing check valve for nuclear applications, with butt weld ends

- KSB ZRS : Swing check valve to DIN/EN with butt weld ends, pressure seal design

_________________________________________

Applications of KSB Check Valve

- Water : From extraction and transport right through to treatment, KSB offers pumps, valves and services for water and waste water applications.

- General industry : Almost no industrial process would be possible without pumps and valves. We accompany our industrial customers from the initial planning stage through to operation and the end of the life cycle of our products.

- Building services : Whether in water supply or drainage, air conditioning or fire protection, KSB pumps and valves are employed in all types of buildings, such as offices, residential houses, hospitals or swimming pools.

- Petrochemicals and chemicals : High temperatures and pressures, flammable fluids – chemical pumps and valves have to withstand extreme conditions. By providing innovative designs and comprehensive service, KSB ensures reliable production.

- Energy : No matter whether the energy comes from the sun, wind, fossil fuels, geothermal heat or nuclear power - KSB offers efficient, safe and reliable solutions for power generating companies around the globe.

- Mining : Minerals are the raw material used as the basis for many products used in our daily life. KSB’s line of GIW® pumps are used to move slurry, a mixture of mined material suspended in water, across long distances or within a processing plant.

_________________________________________________

Báo Giá Van 1 Chiều KSB VINDEC

_________________________________________________

Mua Van 1 Chiều KSB VINDEC

- VINDEC là địa chỉ phân phối VAN 1 CHIỀU uy tín tại Việt nam có thể làm hài lòng khách hàng với năng lực đội ngũ nhân viên có kỹ thuật trình độ kỹ thuật cao, được đào tạo chuyên nghiệp bài bản của hãng.

- Quý khách hàng có thể tìm kiếm hoặc Download về máy Catalogue sản phẩm của hãng tại Website của chúng tôi với thông số kỹ thuật rõ ràng chính xác nhất của hãng tại: VAN 1 CHIỀU

- Thêm vào đó, VINDEC chúng tôi có Kho Hàng tại Hồ Chí Minh và có Kho Hàng + Xưởng Sản Xuất với diện tích trên 2.000m2 tại Hà Nội.

- VINDEC với năng lực và kinh nghiệm gần 20 năm cùng với đội ngũ kỹ sư giầu chuyên môn, chúng tôi có thể đáp ứng được các dự án lớn về hàng Van Công Nghiệp.chúng tôi luôn đồng hành cùng phát triển.
