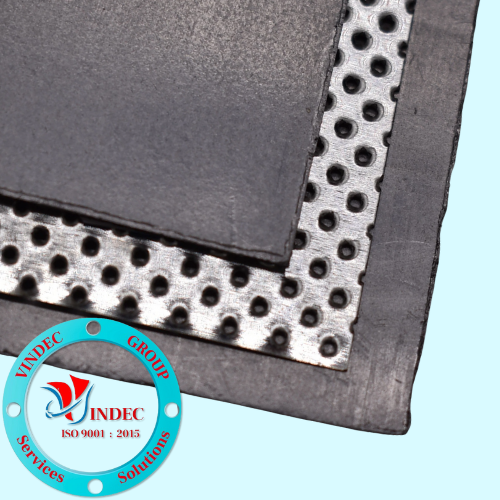

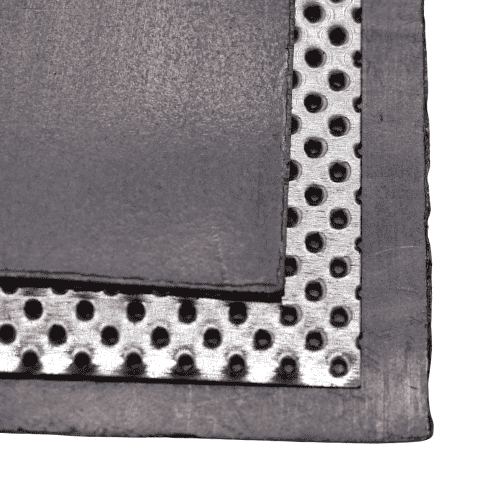

SS Tanged Graphite Sheet

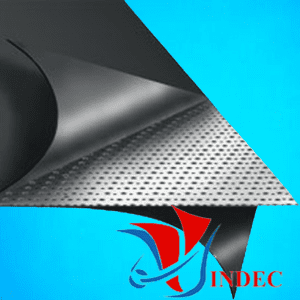

Graphite Sheet Reinforced With Tanged Metal

Reinforced expanded graphite sheet is compressed of expanded graphite sheet and various steel sheets such us tanged.

Reinforced expanded graphite sheet has character of thermally stability, high strength and no cold flow etc. Our Reinforced expanded graphitesheet isan ideal material of all kinds of reinforced graphite gaskets engine heat gasket or other.

There are many kindsof reinforced expanded graphite sheet. Such as reinforced expanded graphite sheet with ss304/304L insert,reinforced expanded graphite sheet with ss316, 316L insert, Reinforced expanded graphite sheet with tinplate insert,ect.

Types of Reinforced Graphite Gasket Sheet

Graphite sheet with tanged 0.1mm SS316 inserted

Graphite sheet with tanged 0.1mm SS304 inserted

Graphite sheet with tanged 0.2-0.25mm carbon steel inserted

Product Data Sheet

Specific gravity: 1.1 g/cm3

Độ nén (ASTM F36A): 15 ~ 35%.

Khôi phục (ASTM F36A):> / = 20%.

Max pressure (Bar): 200bar.

Tensile strength: 30Mpa

Max continuous temperature (°C): 550 °C

Max. Temperature: 650 °C

PH: 0 ~ 14

T: 0.5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10 mm

W x L: 1000, 1500, 2000 mm x 1000, 1500, 2000 mm

Application

Made for various gaskets: Suitable for Petrochemical, Mining, Vessels, Boilers, Piping and Duct, Pumps and Valves, Flanges...

Media:

Steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, etc.
