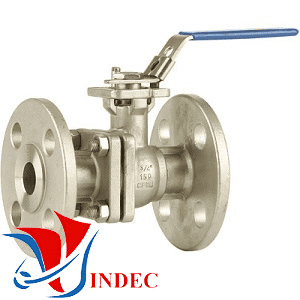

Van Bi Inox #150 Chống Cháy Nổ / ANSI 150 Stainless Steel Flanged Fire Safe Ball Valve
Two piece two way ANSI 150 lb flanged fire safe approved ball valve, lockable lever operation. 316 Stainless Steel body, PTFE seats, FKM backing ring, live loaded packing and anti static device. Firesafe Approved API607 Sixth Edition, Cert. No 230679. ISO5211 Mounting Pad allowing direct coupling of actuation. Great for fuel applications, pipelines, water treatment and general industry.
Design & Manufacture to ANSI B16.34
Face to Face comply with ANSI B16.10
Flange Ends comply with ANSI B16.5
Inspection & Testing in accordance wtih API598
FEATURES
Size 15mm to 300mm
Body 316 Stainless Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Lockable Lever or Gear Box

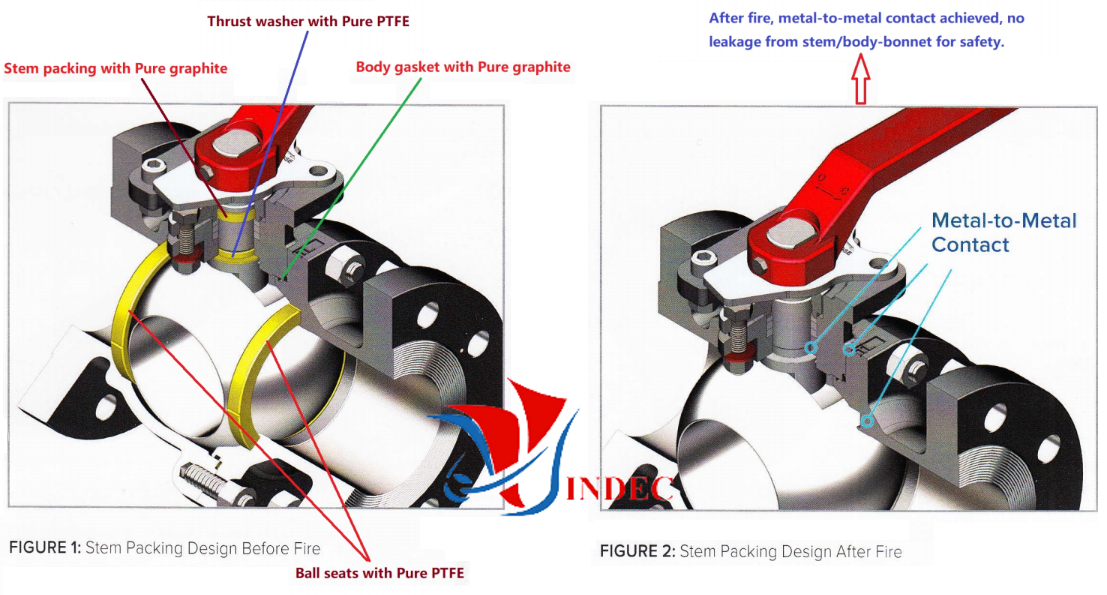

Fire Safe API607 Approved

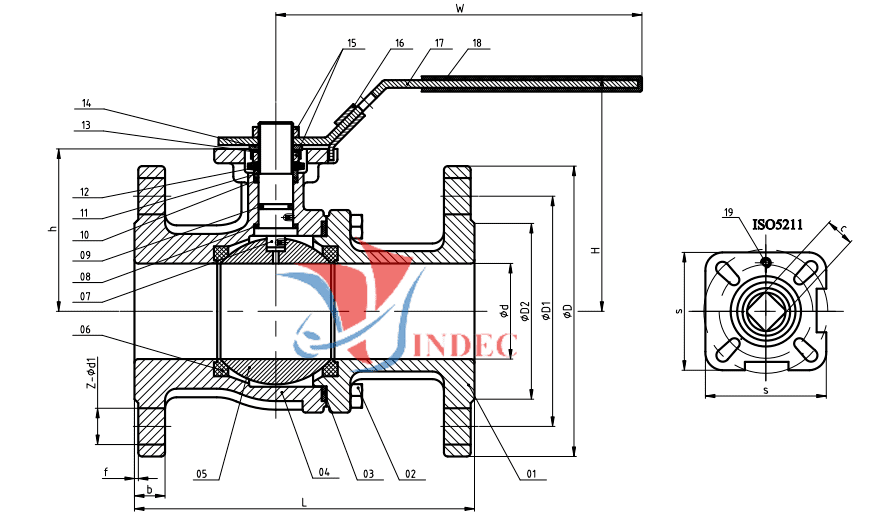

CẤU TẠO SIZE: 50A - 100A
| Item | Part | Material | Qty |
|---|---|---|---|
| 1 | Cap | 1.4408 (CF8M) | 1 |
| 2 | Bolt | SS304 | 4(8) |
| 3 | Body Gasket | Pure Graphite | 1 |
| 4 | Body | 1.4408 (CF8M) | 1 |
| 5 | Ball | SS316 | 1 |
| 6 | Ball Seat | Pure PTFE | 2 |
| 7 | Stem | SS316 | 1 |
| 8 | Thrust Washer | Pure PTFE | 1 |
| 9 | O-ring | Viton | 1 |
| 10 | Stem Packing | Pure Graphite | 1 |
| 11 | Packing Ring | SS304 | 1 |
| 12 | Bellevlle Washer | SS301 | 2 |
| 13 | Nut Stopper | SS304 | 1 |
| 14 | Plate Washer | SS304 | 1 |
| 15 | Nut | SS304 | 2 |
| 16 | Lock Device | SS304 | 1 |
| 17 | Handle | SS304 | 1 |
| 18 | Plastic Cover | Plastic | 1 |
| 19 | Stop Pin | SS304 | 1 |

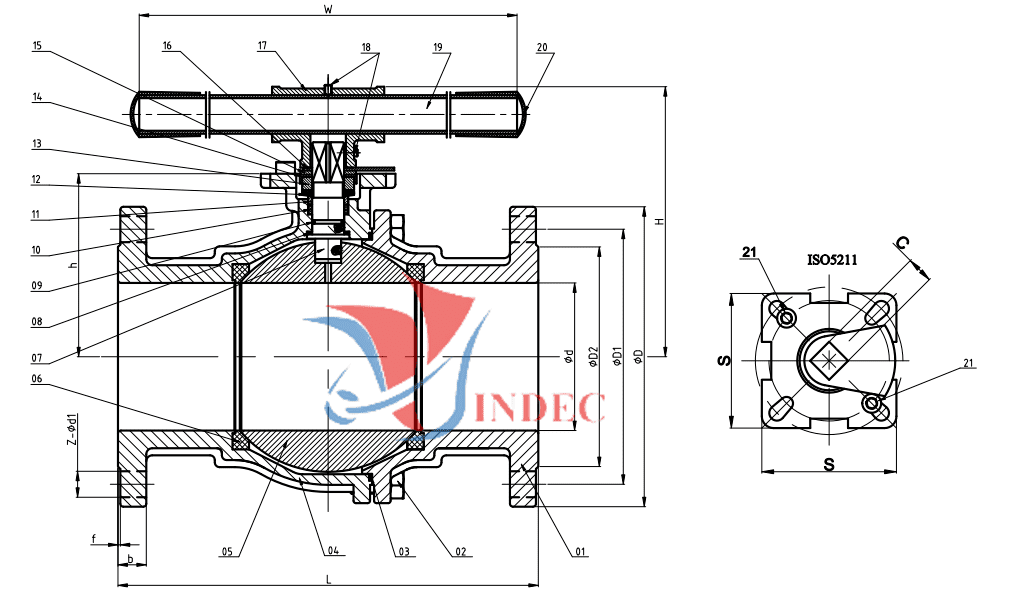

CẤU TẠO SIZE: 125A - 200A
| Item | Part | Material | Qty |
|---|---|---|---|
| 1 | Cap | 1.4408 (CF8M) | 1 |
| 2 | Bolt | SS304 | 8 |
| 3 | Body Gasket | Pure Graphite | 1 |
| 4 | Body | 1.4408 (CF8M) | 1 |
| 5 | Ball | SS316 | 1 |
| 6 | Ball Seat | Pure PTFE | 2 |
| 7 | Stem | SS316 | 1 |
| 8 | Thrust Washer | Pure PTFE | 1 |
| 9 | O-ring | Viton | 1 |
| 10 | Stem Packing | Pure Graphite | 1 |
| 11 | Packing Ring | SS304 | 1 |
| 12 | Bellevlle Washer | SS301 | 2 |
| 13 | Nut | SS304 | 1 |
| 14 | Nut Stopper | SS304 | 1 |
| 15 | Plate Washer | SS304 | 1 |
| 16 | Lock Device | SS304 | 1 |
| 17 | Sleeve | CF8M | 1 |
| 18 | Jackscrew | SS304 | 2 |
| 19 | Handle | Galvanized Pipe | 1 |
| 20 | Plastic Cover | Plastic | 1 |
| 21 | Stop Pin | SS304 | 2 |
