YOSHITAKE - Sight Glass

YOSHITAKE DUCTILE CAST IRON SIGHT GLASS, THREADED ENDS.
Application: Water, Air, Non-corrosive fluids
Max P - T: 10kgf/cm2 @ 180 deg.C
Max Thermal shock: 100 deg. C
Glass: Hardened Glass
Model: SL-1S

YOSHITAKE DUCTILE CAST IRON SIGHT GLASS, JIS10K FLANGED ENDS
Application: Water, Air, Non-corrosive fluids.
Max P - T:  10kgf/cm2 @ 180 deg.C
Max Thermal shock: 100 deg. C
Glass:  Hardened Glass
Model: SL-1F

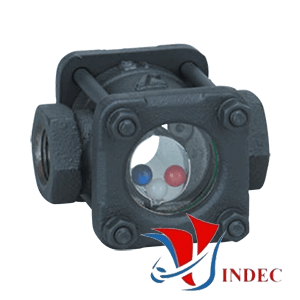

Sight Glass YOSHITAKE SF-1S / SF-1F

YOSHITAKE DUCTILE CAST IRON SIGHT GLASS, THREADED / JIS 10K FLANGED ENDS

Model. SB-1S / SB-1F

YOSHITAKE BRONZE SIGHT GLASS, THREADED ENDS.
Type: Spinner type (Spinner type / Bronze / Screwed)
Application: Cold and hot water
Max. pressure:  0.7MPa
Max. temperature: 100 degrees (C)
Max. thermal shock 40 degrees (C)
Connection JIS Rc screwed
Material Body: Cast bronze
Glass:  Heat-resistant glass
Model. 400

YOSHITAKE SIGHT GLASS, JIS 10K FF FLANGED ENDS.
Cast Iron body, Stainless Steel Flapper
Application: Water, Oil, Non-corrosive fluids.
Max pressure: 10kgf/cm2
Max temperature: 180 deg.C
Max Thermal shock: 100 deg. C
Model: 150F-F

YOSHITAKE SIGHT GLASS, JIS 10K FF FLANGED ENDS.
Application: Water, Oil, Non-corrosive fluids.
Max P - T ratings: 10kgf/cm2 @ 180 deg.C
Max Thermal shock: 100 deg. C
Body: Cast Iron
Glass: Hardened Glass
Model: 150L-S
