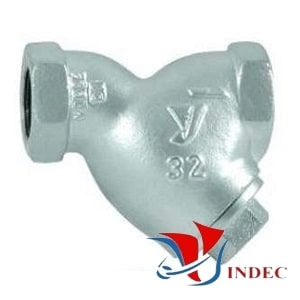

YOSHITAKE DUCTILE IRON STRAINER, THREADED ENDS
Application: Steam, Air, Water, Oil, Non-Corrosive Fluids
Max Pressure-Temperature: 20kgf/cm2 @ 220deg. C
Screen: Stainless Steel (60 mesh as standard)
Model: SY-5
YOSHITAKE Bronze Y-Strainer screwed ends
Nominal size: 15A -50A (1/2"-2")
Body Material: Bronze
Application: Steam, Water, Oil, Air,non-dangerous fluids
Max. pressure: 1.3MPa
Max. Temperature: 220
Model. SY-6
YOSHITAKE DUCTILE IRON STRAINER, JIS 10K FF FLANGED ENDS
Application: Steam, Air, Water, Oil, Non-Corrosive Fluids
Max Pressure-Temperature: 10kgf/cm2 @ 220deg.C
Screen: Stainless Steel (60 mesh as standard)
Model: SY-40 / SY-40C
YOSHITAKE Stainless Steel Y-Strainer screwed ends
Nominal size: 15A -50A (1/2"-2")
Body Material: Stainless Steel
Application: Steam, Cold/Hot Water, Oil, Air,non-dangerous fluids
Max. pressure: 2MPa
Max. Temperature: 250
Model. SY-17 / SY-37
YOSHITAKE DUCTILE IRON Y STRAINER, PN25 FF FLANGED ENDS
Application: Steam, Air, Water, Oil, Non-Corrosive Fluids
Max Pressure-Temperature: 20kgf/cm2 @ 220deg.C
Screen: Stainless Steel (60 mesh as standard)
Model: SY-40EN / SY-40H
YOSHITAKE STAINLESS STEEL Y STRAINER, JIS 10K FLANGED ENDS
Product type: Y type
Nominal size: 15A (1/2") - 150A (6")
Application: Steam, air, water, oil, other non-dangerous fluids
End connection: JIS 10K FF flanged
Working pressure: Max. 1.0 MPa
Working temperature: Max. 100 degree(C) (*)
Screen (15A-100A): 2.5 mmDia.-7.21 holes/Sq.cm
Screen (125A-150A): 6 mmDia.-2.05 holes/Sq.cm
Mesh: Standard 80 mesh
Material Body: Stainless steel
Screen: Stainless steel
Model. SY-8 / SY-38
YOSHITAKE DUPLEX STRAINER, JIS 10K FF FLANGED ENDS
Product type: W type
Nominal size: 20A (3/4") - 100A (4")
Application: Water, oil and other non-dangerous fluids
End connection: JIS 10K FF flanged
Max. pressure: 1 MPa
Working pressure: Max. 1.0MPa
Working temperature: Max. 80 degree(C)
Screen: 6 mm Dia.-1.42 holes/Sq.cm
Mesh: Standard 60 mesh
Material Body: Ductile cast iron or stainless steel
Screen: Stainless steel
YOSHITAKE BASKET STRAINER, JIS 10K FF FLANGED ENDS
Product type: U type
Nominal size: 50A (2") - 150A (6")
Application: Water, oil, non-dangerous fluids
End connection: JIS 20K RF flanged
Working pressure: Max. 2.0 MPa
Working temperature: Max. 80 degree(C)
Screen : 2.5 mm Dia.-7.21 holes/Sq.cm
Mesh: Standard 60 mesh
Material Body: Ductile cast iron
Screen: Stainless steel
SU-50H / SU-50S
YOSHITAKE DUCTILE CAST IRON BASKET STRAINER, JIS 10K FF FLANGED ENDS
Product type: U type
Nominal size: 20A (3/4") - 150A (6")
Application: Water, oil, non-dangerous fluids
End connection: JIS 10K FF flanged, ASME Class 150 flanged
Max. pressure: 1 MPa
Working pressure: Max. 1.0 MPa
Working temperature: Max. 220 degree(C)
Screen: 6 mmDia.-1.42 holes/Sq.cm
Mesh Standard 60 mesh
Material Body: Ductile cast iron
Screen: Stainless steel
Model. SU-20 / SU-20S / SU-20C / SU-20H
