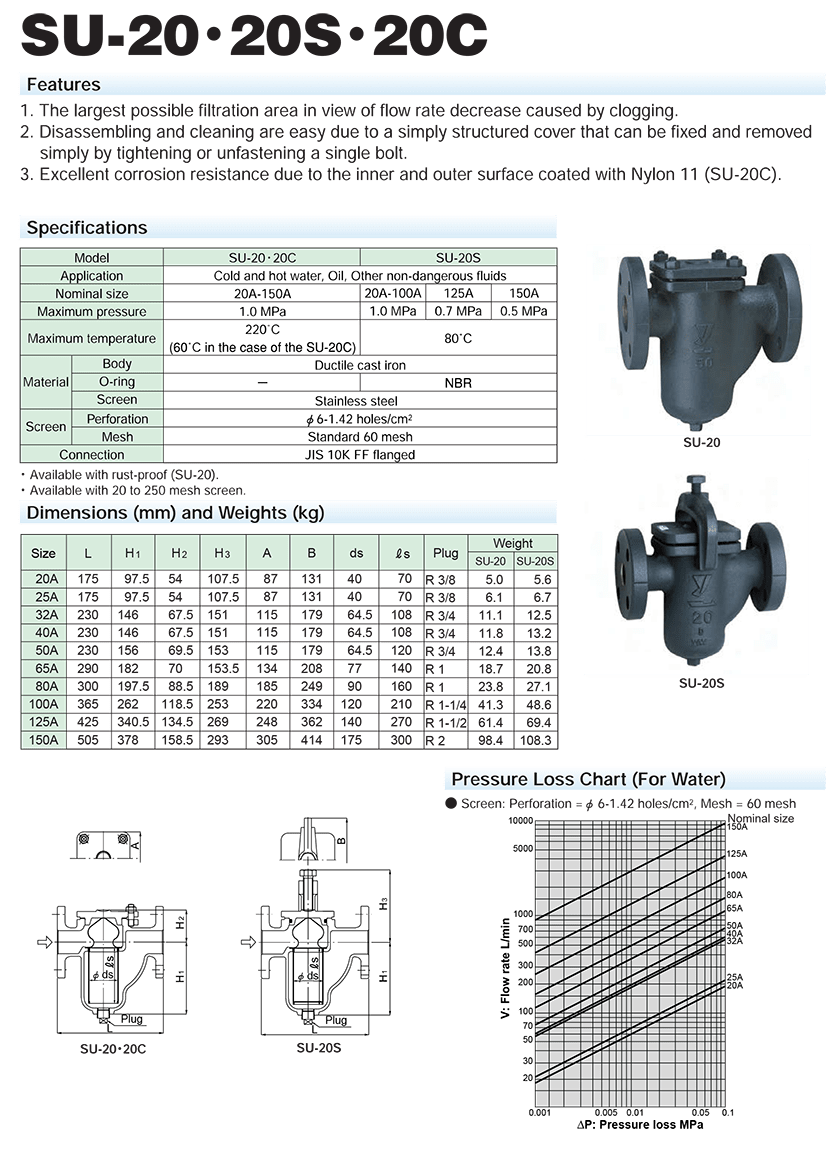

YOSHITAKE SU-20/ 20S/ 20C

Contact

YOSHITAKE DUCTILE CAST IRON BASKET STRAINER, JIS 10K FF FLANGED ENDS
Product type: U type
Nominal size: 20A (3/4") - 150A (6")
Application: Water, oil, non-dangerous fluids
End connection: JIS 10K FF flanged, ASME Class 150 flanged
Max. pressure: 1 MPa
Working pressure: Max. 1.0 MPa
Working temperature: Max. 220 degree(C)
Screen: 6 mmDia.-1.42 holes/Sq.cm
Mesh    Standard 60 mesh
Material Body: Ductile cast iron
Screen: Stainless steel
Model. SU-20 / SU-20S / SU-20C / SU-20H

 Read More: Van YOSHITAKE
