YOSHITAKE SW-10 / SW-10S

Liên hệ

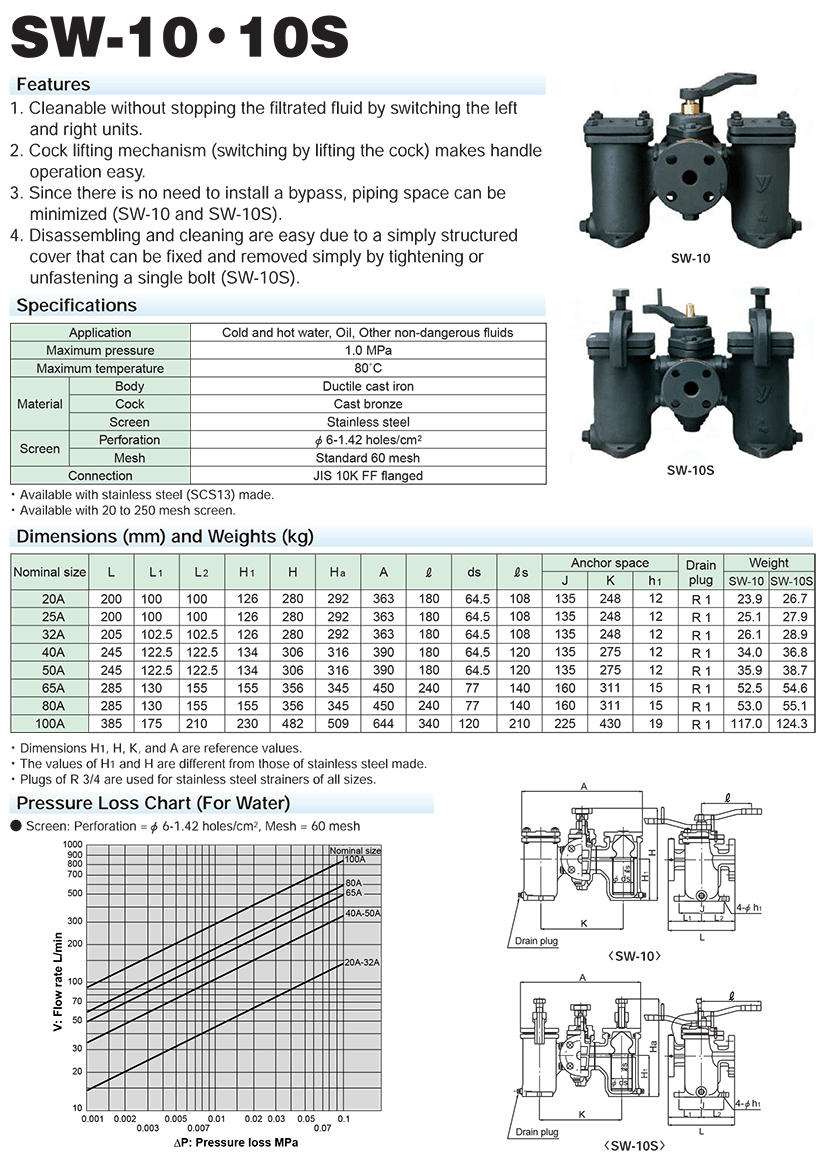

YOSHITAKE DUPLEX STRAINER, JIS 10K FF FLANGED ENDS

Product type: W type
Nominal size: 20A (3/4") - 100A (4")
Application: Water, oil and other non-dangerous fluids
End connection: JIS 10K FF flanged
Max. pressure: 1 MPa
Working pressure: Max. 1.0MPa
Working temperature: Max. 80 degree(C)
Screen: 6 mm Dia.-1.42 holes/Sq.cm
Mesh: Standard 60 mesh
Material Body: Ductile cast iron or stainless steel
Screen: Stainless steel

 Read More: Van YOSHITAKE
