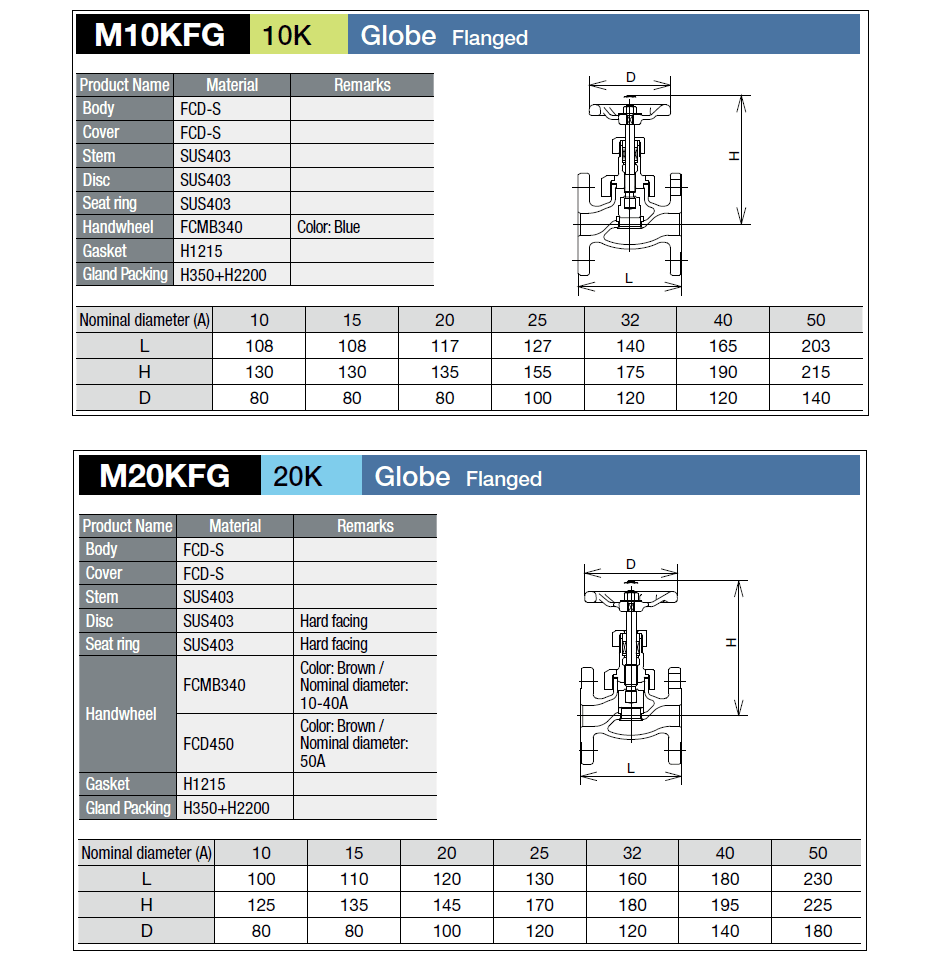

HITACHI DUCTILE GLOBE VALVE JIS 10K FLANGED ENDS
Body: FCD-S
Cover: FCD-S
Stem: SUS403
Seat ring: SUS403
Gasket : H1215
Max Temperature: 300 Deg.C
Max Pressure: 13.7 kgf/cm2
Media: Steam, Oil, Water, LPG, Gas...
Model. M10KFG
HITACHI DUCTILE GLOBE VALVE JIS 20K FLANGED ENDS
Body: FCD-S
Cover: FCD-S
Stem: SUS403
Seat ring: SUS403
Gasket : H1215
Max Temperature: 300 Deg.C
Max Pressure: 27.5 kgf/cm2.
Media: Steam, Oil, Water, LPG, Gas...
Model. M20KFG
