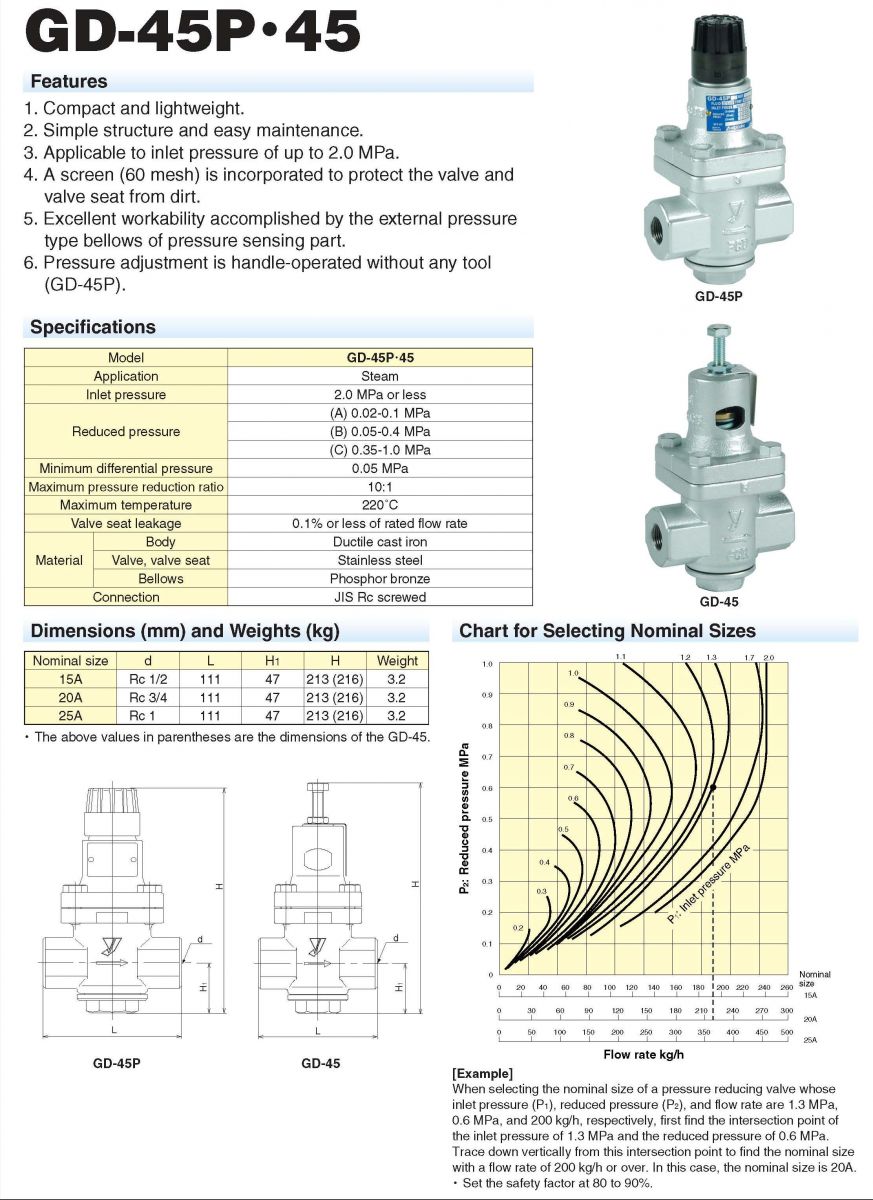

YOSHITAKE GD-45/ 45P

Liên hệ

Van Giảm Áp Hơi YOSHITAKE GD-45P/GD-45
Feature Direct-acting type / Ductile cast iron / Screwed
Type Direct-acting type
Specifications Application Steam
Inlet pressure Max. 2.0MPa
Reduced pressure 0.02 - 1.0MPa(*)
Connection JIS Rc screwed
Min. differential pressure 0.05MPa
Max. temperature 220 degree(C)
Material Body Ductile cast iron
Valve & seat Stainless steel
Bellows Phosphor bronze
Remarks
* Reduced pressure
A: 0.02-0.1 MPa
B: 0.05-0.4 MPa
C: 0.35-1.0 MPa
