YOSHITAKE - Air Vent Valves

YOSHITAKE AIR VENT VALVE, THREADED ENDS
Body: Cast iron
Application: Water, Oil (Specific Gravity: 0.8 or more)
Max. pressure - temperature: 10kgf/cm2 @ 90deg.C
Brass Valve & Seat with NBR Disc, Stainless Steel Float.
Model: TA-3 / TA-6

YOSHITAKE AIR VENT VALVE, SCREWED END
Application: Water.
Max. pressure: 3kgf/cm2
Max. temperature: 100deg.C
Body - Brass (Nikel Plating)
Float - Heat Resisting Resin
Disc - Synthetic Rubber.
Model: TA-11 / TA-11L

YOSHITAKE AIR VENT VALVE, THREADED ENDS
Body:Cast iron
Application: Water, Oil (Specific Gravity: 0.8 or more)
Max. pressure - temperature: 10kgf/cm2 @ 90deg.C
Brass Valve & Seat with NBR Disc, Stainless Steel Float.
Model: TA-2 / TA-5 / TA-5F

YOSHITAKE Air Vent Valve Threaded Ends - TA-16CVA / 16CVS

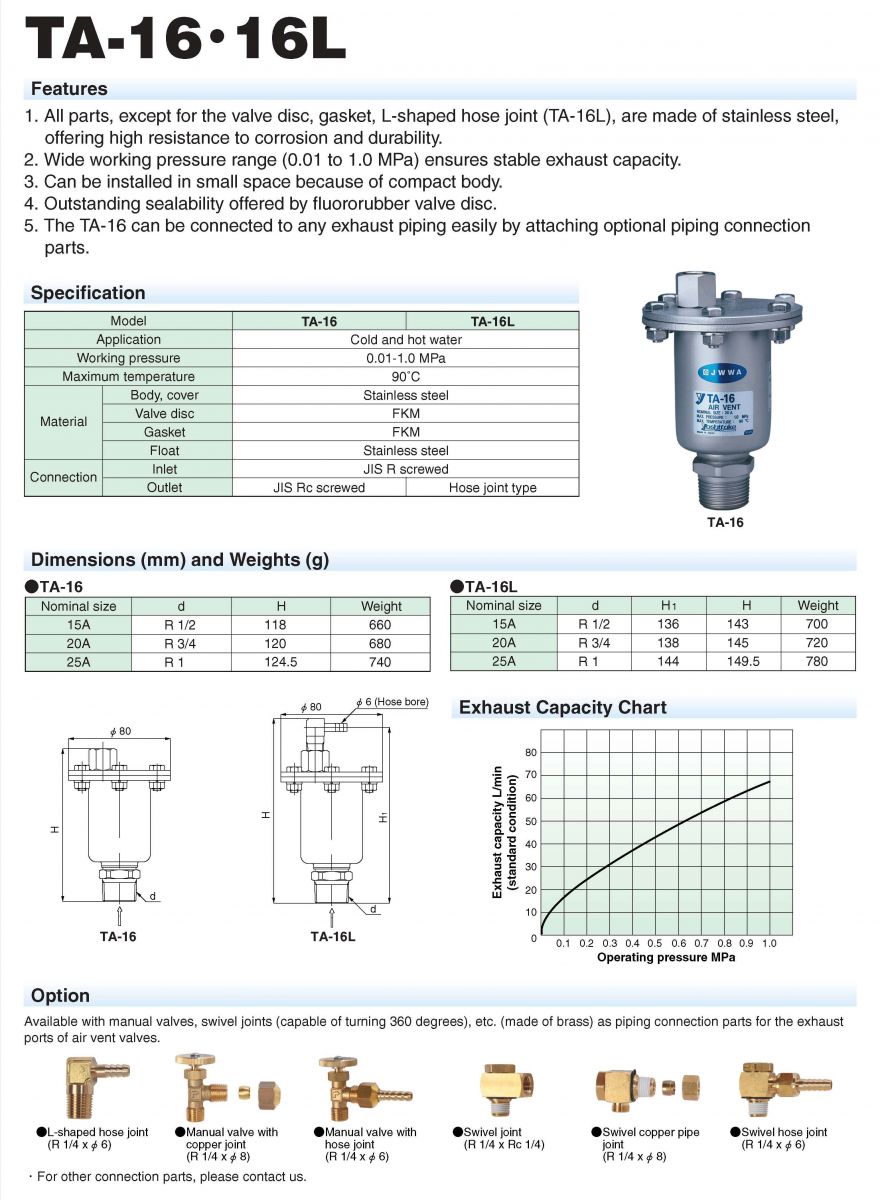

YOSHITAKE STAINLESS STEEL AIR VENT VALVE, SCREWED END
Application: Water.
Max. P - T ratings: 10kgf/cm2 @ 90deg.C
Body: Stainless steel
Valve: FKM
Valve seat: Stainless steel
Float: Stainless steel
Model: TA-16 / TA-16L

YOSHITAKE AIR VENT VALVE, SCREWED ENDS
Application: Water.
Max. P - T ratings: 10kgf/cm2 @ 100deg.C
Body: Bronze ; Valve: NBR ; Valve seat: Brass
Float: Heat Resisting Resin
Model: TA-22 / TA-22L / TA-22ML
