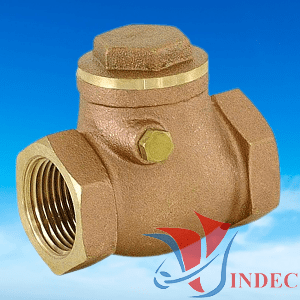

Bronze / Brass Swing Check Valve Threaed Ends
- Bronze / brass swing check valve threaed ends/ Bronze/brass non-return valve threaed ends, also known as threaded brass check valve. Used in hydraulic systems to prevent, water, oil or slurry, air flow against
- Water check valve flip leaf is a type of valve manufactured with copper as the main material. Their body is cast or hot stamped copper copper according to a pre-made pattern followed by threading steps to connect with the pipeline.
Structure of Bronze / Brass Swing Check Valve Threaed Ends
Technical Bronze / Brass Swing Check Valve Threaed Ends
- Bronze / Brass Swing Check Valve Threaed Ends DN8 - 1/4" (8mm/ 10A) Size piping 13 mm
- Bronze / Brass Swing Check Valve Threaed Ends DN10 - 3/8" (10mm/ 10A) Size piping 17 mm
- Bronze / Brass Swing Check Valve Threaed Ends DN15 1/2" (15mm/ 15A) Size piping 21 mm
- Bronze / Brass Swing Check Valve Threaed Ends DN20 - 3/4" (20mm/ 20A) Size piping 27mm
- Bronze / Brass Swing Check Valve Threaed Ends DN25 - 1" (25mm/ 25A) Size piping 34 mm
- Bronze / Brass Swing Check Valve Threaed Ends DN32 - 1.1/4" (32mm/ 32A) Size piping 42 mm
- Bronze / Brass Swing Check Valve Threaed Ends DN40 - 1.1/2" (40mm/ 40A) Size piping 49 mm
- Bronze / Brass Swing Check Valve Threaed Ends DN50 - 2" (50mm/ 50A) Size piping 60 mm
- Bronze / Brass Swing Check Valve Threaed Ends DN65 - 2.1/2" (50mm/ 50A) Size piping 76 mm
- Bronze / Brass Swing Check Valve Threaed Ends DN80 - 3" (80mm/80A) Size piping 90 mm
- Bronze / Brass Swing Check Valve Threaed Ends DN100 -4" (100mm/100A) Size piping 114 mm
