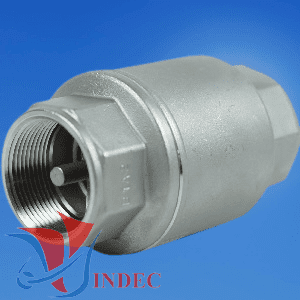

Stainless Steel Spring Lift Check Valve Threaded Ends
- It is has name of English is stainless steel spring lift check valve threaded ends / stainless steel non-return spring valve threaded ends, also known as spring check valve threadedor anti-flow valve reverse.
- Stainless Steel Spring Lift Check Valve Threaded Ends is a type of valve manufactured in stainless steel 201, 304, 316 mainly their body made of stainless steel according to pre-made molds.
- Materials body of check valve: SS 304, SS 316, SS 201
- Connection ends: Threaded ends BS - NPT
- Size: DN8, DN10, DN15, Dn20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
- Pressure range: 10kgf/cm2, 16kgf/cm2
- Temperature range: up to Max. 220 độ
- Types of check valves : Swing check valve, Lift check valve, Spring check valve...
- Brands: King gate, Joeun, Arita, Kitz, Samwoo, KSB
- Origin: China, Korea, Malaysia, Japan, Thailand, EU, Germany, USA...
- Stainless steel spring lift check valve threaded ends DN15 - 1/2" (15mm/ 15A) with piping size 21 mm
- Stainless steel spring lift check valve threaded ends DN20 - 3/4" (20mm/ 20A) with piping size 27mm
- Stainless steel spring lift check valve threaded ends DN25 - 1" (25mm/ 25A) with piping size 34 mm
- Stainless steel spring lift check valve threaded ends DN32 - 1.1/4" (32mm/ 32A) with piping size 42 mm
- Stainless steel spring lift check valve threaded ends DN40 - 1.1/2" (40mm/ 40A) with piping size 49 mm
- Stainless steel spring lift check valve threaded ends DN50 - 2" (50mm/ 50A) with piping size 60 mm
