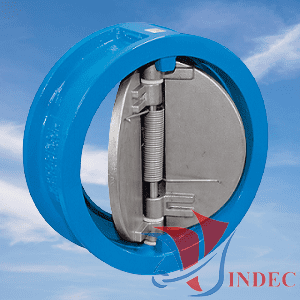

Cast Iron / Ductile Iron Dual-Plate Check Valve Wafer Style

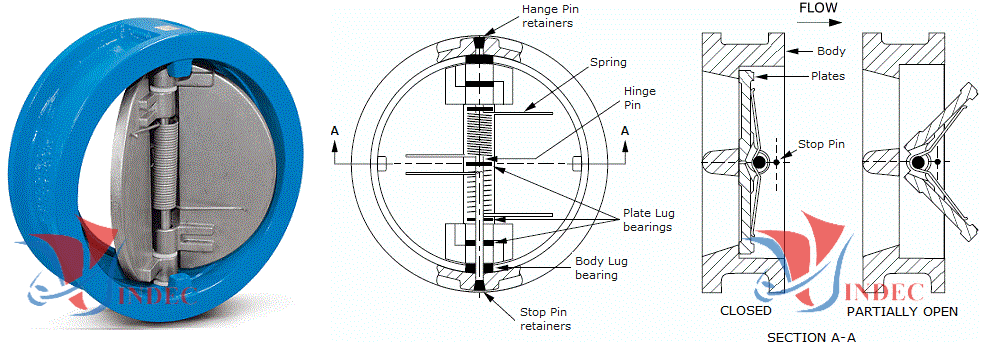

Stainless Steel Dual Plate Swing Check Valve Wafer Style
Stainless Steel Wafer Butterfly Check Valve/ Stainless Steel Double Disc Wafer Butterfly Type Check Valve/ Wafer Dual Plate Swing Check Valve.
Trchnical Stainless Steel Dual Plate Swing Check Valve Wafer Style
- Materials body of check valve: SS 304, SS 316, SS 201
- Connection ends: Wafer Style (Flanged ends: JIS10K, DIN PN10, PN16 - ANSI class 150, 300...)
- Size: DN8, DN10, DN15, Dn20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
- Pressure range: 10kgf/cm2, 16kgf/cm2
- Temperature range: up to Max. 220 độ
- Types of check valves : Butterfly check valve
- Brands: King gate, Joeun, Arita, Kitz, Samwoo, KSB
Stainless steel dual plate swing check valve DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250
- Stainless steel dual plate swing check valve DN50 (50mm/ 50A) đường ống phi 60 mm
- Stainless steel dual plate swing check valve DN65 (50mm/ 50A) đường ống phi 76 mm
- Stainless steel dual plate swing check valve DN80 (80mm/80A) đường ống phi 90 mm
- Stainless steel dual plate swing check valve DN100 (100mm/100A) đường ống phi 114 mm
- Stainless steel dual plate swing check valve DN125 (125mm/125A) đường ống phi 140 mm
- Stainless steel dual plate swing check valve DN150 (150mm/150A) đường ống phi 168 mm
- Stainless steel dual plate swing check valve DN200 (200mm/200A) đường ống phi 220 mm
- Stainless steel dual plate swing check valve DN250 (250mm/250A) đường ống phi 273 mm
