Cast Iron Gate Valves

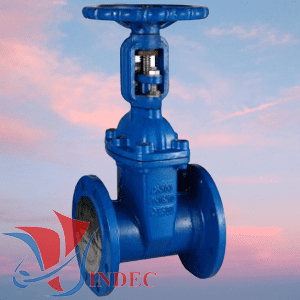

Cast Iron Rising Stem Gate Valve Flanged End

- Cast Iron body

- Cast Brass seat

- Rising Stem

- Flanged ends: PN10, PN16, JIS10K, JIS 16K, ANSI 125

- Sizes 2" to 12" - Đường kính van: DN50 - DN500

- Pressure rating: PN10, PN16, JIS10K, JIS 16K, ANSI 125

- Temperture: -10 đến 120 độ C

- Manual gate valve with X20Cr13 rising stem, Cast Brass seats, AISI 304 seat rings of Stainless Steel and GG25 Cast Iron body, wedge and yokes. This gate valve offers a variety of optional extras including location, indication, switch and actuation.

Key features:

- Available in sizes: 2" to 12". GG25

- Cast Iron body with Cast Brass seat.

- Temperature range: -10°C to 120°C.

- Pressure rating: PN10, PN16, JIS10K, JIS 16K, ANSI 125

- An economical, maintenance free valve!

Applications: Our Cast Iron Rising Stem Gate Valve fits between flanges of PN16 and is intended for general, industrial and HVAC applications; warm water, cold water and oils separation.

Cast Iron Non-Rising Stem Gate Valve Flanged End
