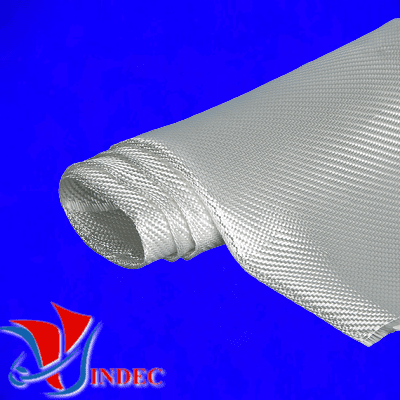

Glass Fibre Cloth

- Thickness: 1mm to 5mm

- Width: 1m or 1.5m up to 2m

- Working Temperature: 350℃ ~ 550℃

- Packing: 50kg/roll

- In CTN or plastic woven bag of net each



Glass Fibre Cloth

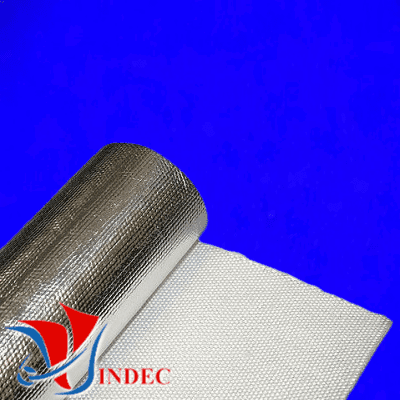

  • - Made of continuous filament texturized yarns, they demonstrate a better insulating properties and greater fullness. Insulating properties depend upon conductivity and radiation and these are influenced by the fabric construction. Normal for removable insulation covers, fiber blankets, fire curtains, expansion joints and flue ducts. It can be texturized glassfiber cloth with Aluminium. E/C Texturized Fiberglass Cloth,Temp.: 550℃
  • - E-Glass Woven Rovings are bidirectional fabric made by interweaving direct rovings.
  • - E-Glass Woven Rovings are compatible with unsaturated polyester, vinyl ester, epoxy and phenolic resins.
  • - Glass Woven Rovings are a high-performance reinforcement widely used in hand lay up and robot processes to manufacture boats, vessels, plane and automotive parts, furniture and sports facilities.

Technical Glass Fibre Cloth

  • - Thickness: 1mm to 5mm
  • - Width: 1m or 1.5m up to 2m
  • - Working Temperature: 350℃ ~ 550℃
  • - Packing: 50kg/roll
  • - In CTN or plastic woven bag of net each

Style No.

Thickness (mm)

Weight (g/m2)

Weight (oz/y2)

Width (m)

Weave

GF-600

0.80

600

18

1.0-1.8

Plain

GF-800

1.00

800

24

1.0-2.0

Plain

GF-1000

1.50

1000

30

1.0-2.0

Plain

GF-1250

2.00

1250

36

1.0-2.0

Plain

GF-1800

3.00

1800

52

1.0-2.0

Plain



Featrures of Glass Fibre Cloth

  • - Warp and weft rovings aligned in a parallel and flat manner, resulting in uniform tension
  • - Densely aligned fibers, resulting in high dimensional stability and making handling easy
  • - Good moldability, fast and complete wet out in resins, resulting in high productivity
  • - Good mechanical properties and high strength of parts
  • - It could be used under 70 ~ 850 Centigrade, also it could resists transient high temperature;
  • - It resists ozone, oxygen, light seasoning and climate seasoning;
  • - High intensity, high module, low shrinkage, non-heteromorphy;
  • - When the temperature exceeds its working temperature, it still has lingering intensity.
  • - Flame resistant, good ability of insulating heat and holding temperature; High intensity; Corrosion resistant.

Main Application Glass Fibre Cloth

  • - It is the ideal substitute for the asbestos cloth. The texturized glass fiber cloth cabe offered to insert the copper wire, nickel wire and steel wire etc.
  • - Fiberglass fabric of expanding-volume yarn has great capability and it is widely used in such fields as steel-iron, electric energy, metallurgy, chemical industry, environment protection, cement, etc.
  • - It is suitable to use as enhancing material with high request on mechanical capacity and for body protecting, e.g. generator system, soft joint of boiler and chimney, heat insulation of engine room, production of fireproofing curtain.
  • - This product is also used for system expiating of exhaust, air exchange, breathe, disposal of dust, exhaust gas; all kinds of coated basal fabric, temperature holding of boiler, pipeline knotting, etc.

Sản phẩm liên quan

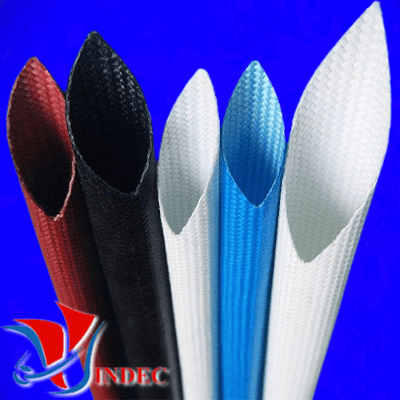

Glass Fibre Sleeve Silicone Coated

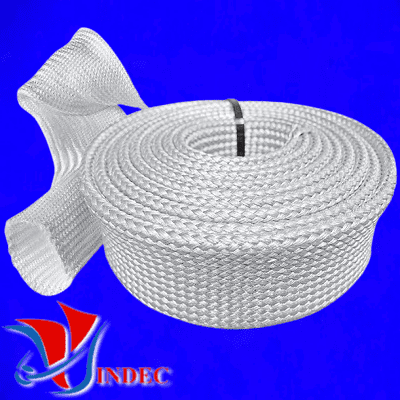

Glass Fibre Sleeve

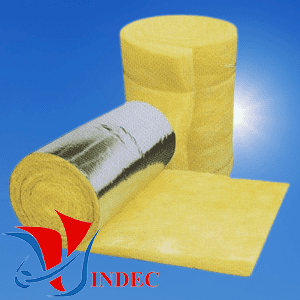

Fiber Glass Wool Boards

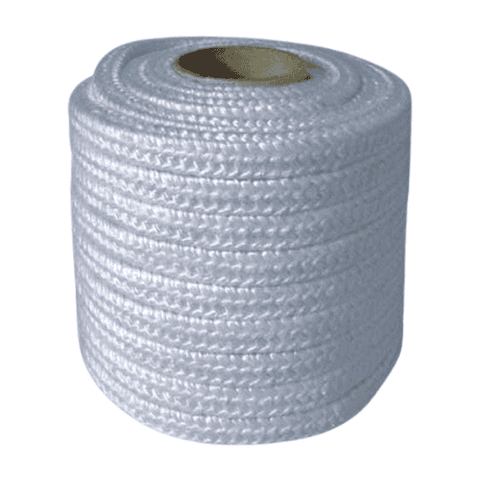

Glass Fibre Square Rope

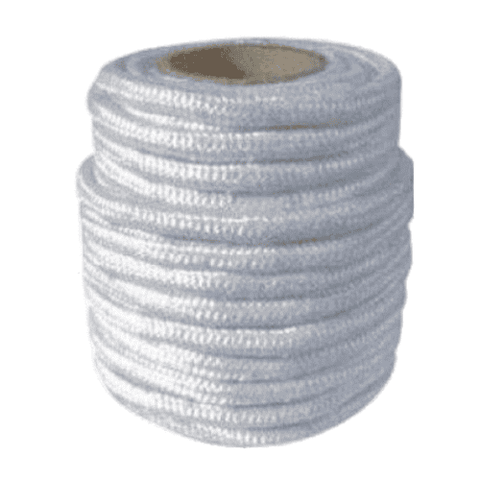

Glass Fibre Round Rope

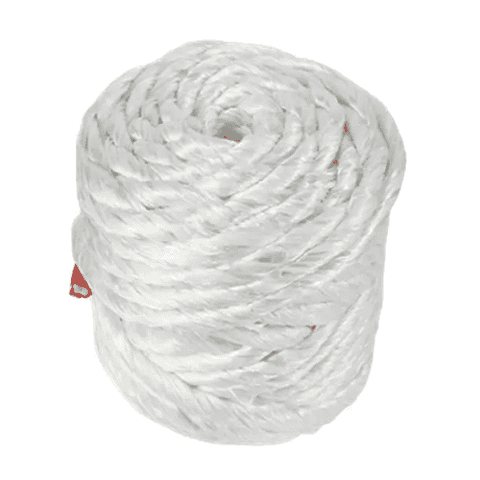

Glass Fibre Twist Rope

Glass Fibre Cloth

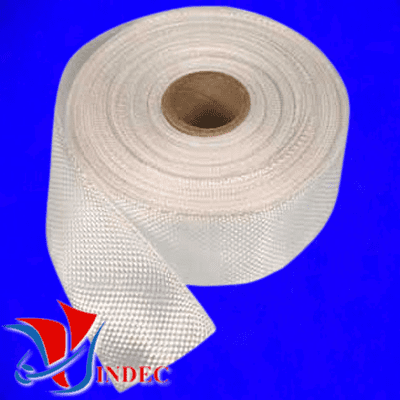

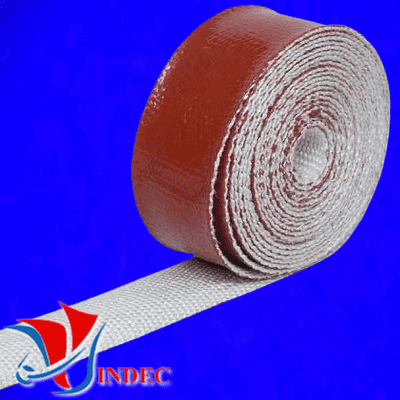

Glass Fiber Tape
