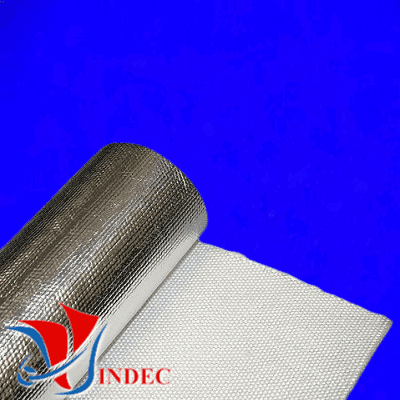

Glass Fibre Cloth with Aluminum Coated

Liên hệ

Glass Fibre Cloth with Aluminum Coated

- This is a new environmentally-friendly heat insulation material, which is soft, light and easy to Install. Glass fiber cloth aluminum foil surface by the special anti-corrosion coating processing, corrosion resistance to rise greatly.

- Water vapor permeability smaller, more strengthened the vapor barrier effect.

Technical Glass Fibre Cloth with Aluminum Coated

- Texturized Fiberglass Cloth with aluminum

- Thickness: 1mm to 5mm

- Width: 1m or 1.5m up to 2m

- Working Temperature: 550℃

- Packing: 50kg/roll

- In CTN or plastic woven bag of net each

Style No.

Thickness (mm)

Weight (g/m2)

Weight (oz/y2)

Width (m)

Weave

GF-600

0.80

600

18

1.0-1.8

Plain

GF-800

1.00

800

24

1.0-2.0

Plain

GF-1000

1.50

1000

30

1.0-2.0

Plain

GF-1250

2.00

1250

36

1.0-2.0

Plain

GF-1800

3.00

1800

52

1.0-2.0

Plain



Featrures of Glass Fibre Cloth with Aluminum Coated

- Warp and weft rovings aligned in a parallel and flat manner, resulting in uniform tension

- Densely aligned fibers, resulting in high dimensional stability and making handling easy

- Good moldability, fast and complete wet out in resins, resulting in high productivity

- Good mechanical properties and high strength of parts

- It could be used under 70 ~ 850 Centigrade, also it could resists transient high temperature;

- It resists ozone, oxygen, light seasoning and climate seasoning;

- High intensity, high module, low shrinkage, non-heteromorphy;

- When the temperature exceeds its working temperature, it still has lingering intensity.

- Flame resistant, good ability of insulating heat and holding temperature; High intensity; Corrosion resistant.

Main Application Glass Fibre Cloth with Aluminum Coated

- It is the ideal substitute for the asbestos cloth. The texturized glass fiber cloth cabe offered to insert the copper wire, nickel wire and steel wire etc.

- Fiberglass fabric of expanding-volume yarn has great capability and it is widely used in such fields as steel-iron, electric energy, metallurgy, chemical industry, environment protection, cement, etc.

- It is suitable to use as enhancing material with high request on mechanical capacity and for body protecting, e.g. generator system, soft joint of boiler and chimney, heat insulation of engine room, production of fireproofing curtain.

- This product is also used for system expiating of exhaust, air exchange, breathe, disposal of dust, exhaust gas; all kinds of coated basal fabric, temperature holding of boiler, pipeline knotting, etc.
