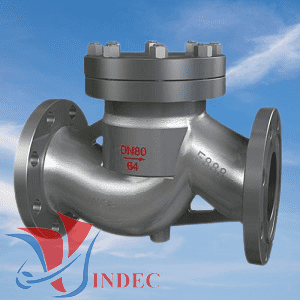

Stainless Steel Piston Lift Check Valve Flanged Ends
- Van 1 chiều piston inox lắp mặt bích có tên tiếng anh là Stainless Steel Piston Lift Check Valves Flanged Ends/ stainless steel non-return piston valve flanged ends, còn được gọi là van kiểm tra poston inox lắp mặt bích hay van chống chảy ngược.
- Van hơi 1 chiều inox piston nâng là loại van được sản xuất bằng chất liệu inox 201, 304, 316 là chủ yếu Thân của của chúng được đúc bằng inox theo khuôn mẫu tạo sẵn.
Thông Số Kỹ Thuật Van 1 Chiều Đĩa Piston Inox Lắp Mặt Bích
- Materials body of check valve: SS 304, SS 316, SS 201
- Connection ends: Flange ends JIS10K, JIS16K, JIS20K, PN10, PN16, PN25, PN40, ANSI150-300-600
- Size: DN8, DN10, DN15, Dn20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
- Pressure range: 10kgf/cm2 up to 64 Kg/cm 2
- Temperature range: up to Max. 220 độ
- Types of check valves : Piston Lift check valve
- Brands: King gate, Joeun, Arita, Kitz, Samwoo, KSB
- Origin: China, Korea, Malaysia, Japan, Thailand, EU, Germany, USA...
- Van chuyên dùng cho hơi nóng, khí nén, nước, hóa chất...
Lựa Chọn Van 1 Chiều Đĩa Piston Inox Lắp Mặt Bích Với Đường Ống
Stainless steel piston lift check valve flanged ends : DN15 1/2" (15mm/ 15A) Piping size 21 mm
- Stainless steel piston lift check valve flanged ends : DN20 - 3/4" (20mm/ 20A) Piping size 27mm
- Stainless steel piston lift check valve flanged ends : DN25 - 1" (25mm/ 25A) Piping size 34 mm
- Stainless steel piston lift check valve flanged ends : DN32 - 1.1/4" (32mm/ 32A) Piping size 42 mm
- Stainless steel piston lift check valve flanged ends : DN40 - 1.1/2" (40mm/ 40A) Piping size 49 mm
- Stainless steel piston lift check valve flanged ends : DN50 - 2" (50mm/ 50A) Piping size 60 mm
- Stainless steel piston lift check valve flanged ends : DN65 - 2.1/2" (50mm/ 50A) Piping size 76 mm
- Stainless steel piston lift check valve flanged ends : DN80 - 3" (80mm/80A) Piping size 90 mm
- Stainless steel piston lift check valve flanged ends : DN100 -4" (100mm/100A) Piping size 114 mm
- Stainless steel piston lift check valve flanged ends : DN125 - 5" (125mm/125A) Piping size 140 mm
- Stainless steel piston lift check valve flanged ends : DN150 - 6" (150mm/150A) Piping size 168 mm
- Stainless steel piston lift check valve flanged ends : DN200 - 8" (200mm/200A) Piping size 220 mm
- Stainless steel piston lift check valve flanged ends : DN250 - 10" (250mm/250A) Piping size 273 mm
- Stainless steel piston lift check valve flanged ends : DN300 - 12" (300mm/300A) Piping size 323 mm
