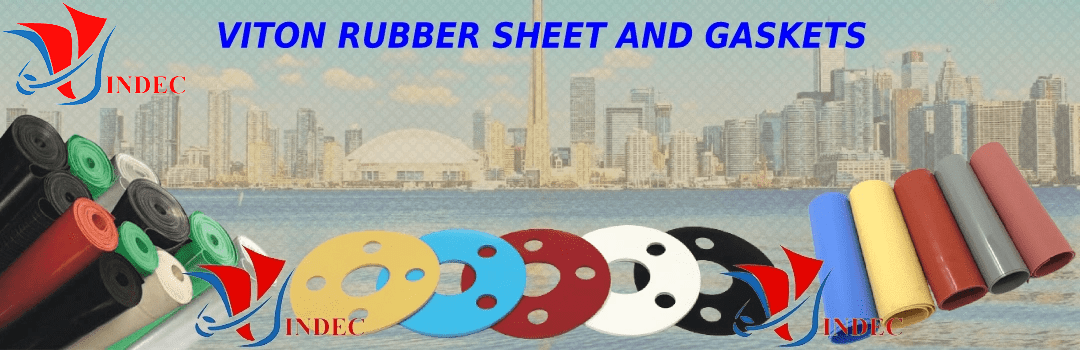

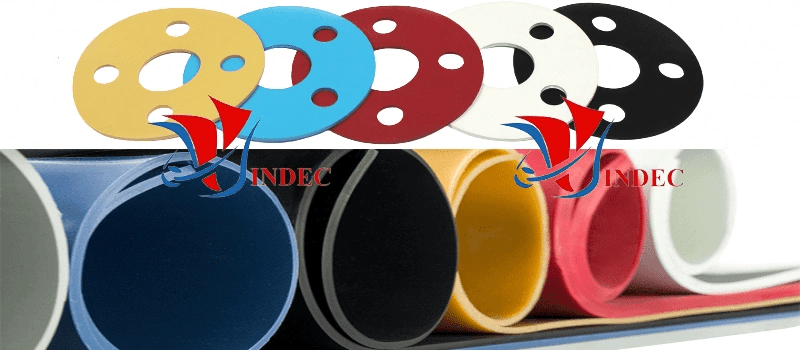

VITON / FKM RUBBER GASKET
- Specific gravity: 1.8 g/cm3
- Hardness: 70+/-5 shore A
- Tensile strength: Mpa 8
- Pressure Max. (bar): 10 Bar
- Color: White / Black
- Shore Hardness: 75° ± 5° (type A), 70° ± 5° (type B).
- Temperature: -20°C up to +275°C (type A), -30°C up to +300°C (type B)
- Outstanding resistance to acid, oil and petroleum based fluids. Excellent ozone resistance.
- Trade Names: Viton® sheet, Fluorel® sheet, Technoflon® sheet, Dai-El® sheet
- ANSI, JIS, DIN, BS,..
- Size: DN 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500
TECHNICAL SPECIFICATION
- Ozone: Excellent
- Dilute Acids & Bases: Excellent
- Concentrated Acids & Bases: Excellent
- Oils: Very Good
- Solvents: Very Good
