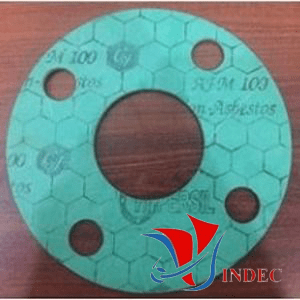

Non Asbestos Gasket Jointing Sheets: CHARMINAR HYPERSIL HNA 100
- MATERIAL : Made from Aramid fibre, Mineral fibre & Inorganic bounded with Synthetic NBR Elastomers.
- DENSITY : 1.50 - 1.90 Gm/cm3
- COLORS : Green (Other color on request)
- OPERATING CONDITION:
+ Maximum internal pressure: 70 BAR
+ Maximum Temperature: 250°C
+ The following Information Applies to material Thickness 1.5mm.
- THICKNESS: 0,25mm, 0,5mm, 1mm, 1,5mm, 2mm, 3mm, 4mm, 5mm, 6mm
- DIMENSION OF SHEETS (mm) : 1500 x 1500, 1500 x 3100, 1500 x 1000, 1500 x 2000, 1270 x 1270, 1270 x 3810, 3000 x 3000
- APPLICATIONS: Suitable for oils, fuels, lubricants, alcohols, gases, hydrocarbons, steam, water, cooling liquids, most diluted acids and alkalies for medium stress conditions.
- MODEL : HYPERSIL HNA 100
