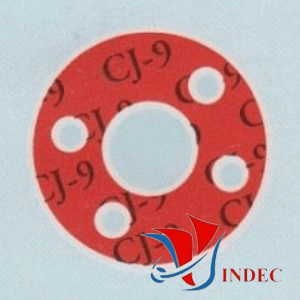

CHARMINAR CJ-9

CHARMINAR CJ-9 : ASBESTOS JOINTING GASKET SHEET

- COLOUR: BLACK / GRAPHITED / RED & OTHER COLORS ON REQUEST

- APPLICATION: To seal off steam, Air, Water, Various alkaline chemicals under low stress conditions

- MATERIAL COMPOSITION: Made from Chrysotile Asbestos Fiber with Synthetic & Natural Elastomers and Inorganic fillers

- MAX. TEMP : 380° C MAX.

- PRESSURE : 35Kg/ Cm2

- THICKNESS: 0.40mm to 6.00mm

- PHYSICAL PROPERTIES: (Value related to 1.50mm thickness)

+ Density ( gm/cc) : 1.70 - 2.20

+ Ignition loss (IS:2712/1998) ( % ) < 28

+ Compressibility (IS:2712/1998) ( % ) : 6=14

+ Recovery (IS:2712/1998) ( % ) > 40

+ Tensile strength (IS:2712/1998) : Mpa > 6.7

- Important All data and statement concerning these products may be considered as being indicative of representive properties and characteristics obtainable. Since industry practice vary, we make no warranty, expressed or implied, concerning their use, nor do we accept responsibility for any mis-applications of these products of their use under any conditions.
