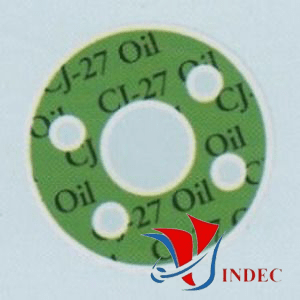

CHARMINAR CJ-27

CHARMINAR CJ-27 : COMPRESSED ASBESTOS  FIBER JOINTING SHEET

- MATERIAL TYPE : Made from Chrysotite Asbestos Fiber with Synthetic Elastomers and Inorganic fillers.

- SURFACE FINISH : Green/Green (OTHER COLORS ON REQUEST)

- DENSITY (Test Method : IS:2712/1998) : 1.70 - 2.20 G/cm3

- TENSILE STRENGTH : (Test Method : IS:2712/1998) : > 24 Mpa

- OPERATING CONDITION

+ Maximum pressure : 140 Bar

+ Maximum Temperature : 550°C

+ The following Information Applies to material Thickness 1.5mm.

- SPECIFICATION COMPLIANCE : IS: 2712 / 1998 GRADE O / 1, W / 1

- THICKNESS: 0,25mm, 0,5mm, 0.8mm, 1mm, 1,5mm, 2mm, 3mm, 4mm, 5mm, 6mm

- DIMENSION OF SHEETS (mm) : 1500 x 1500, 1500 x 3100, 1500 x 1000, 1500 x 2000, 1270 x 1270, 1270 x 3810, 3000 x 3000

+ - Availability CJ-27    1270mm x 1270mm x 0.5mm: 1,61 Kg
+ - Availability CJ-27    1270mm x 1270mm x 1.0mm: 3,22 Kg
+ - Availability CJ-27    1270mm x 1270mm x 1.5mm: 4,83 Kg
+ - Availability CJ-27    1270mm x 1270mm x 2mm: 6,45 Kg
+ - AvailabilityCJ-27    1270mm x 1270mm x 3mm: 9,67 Kg
+ - Availability CJ-27    1270mm x 1270mm x 4mm: 12,90 Kg
+ - Availability CJ-27    1270mm x 1270mm x 5mm: 16,12 Kg
+ - Availability CJ-27    1270mm x 1270mm x 6mm: 19,35 Kg

- APPLICATIONS: Suitable for use with internal combustion engines, compressors, Refrigerators, chemical plants, etc. This grade also provides effective sealing against hot oils, tar oils and chlorinated & aromatic hydrocarbons under high stress conditions.

- MODEL: CJ-27
