CHARMINAR CJ-21

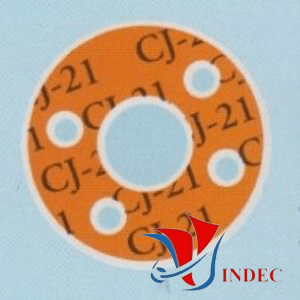

CHARMINAR CJ-21 : COMPRESSED ASBESTOS  FIBER JOINTING SHEET

- MATERIAL TYPE : Made from Chrysotile Asbestos Fiber, Natural Rubber

- SURFACE FINISH : Red, Grey , Graphited (OTHER COLORS ON REQUEST)

- DENSITY (Test Method : IS:2712/1998) : 1.70 - 2.20 G/cm3

- TENSILE STRENGTH : (Test Method : IS:2712/1998) : > 6.7 Mpa

- OPERATING CONDITION

+ Maximum pressure : 35 Bar

+ Maximum Temperature : 380°C

+ The following Information Applies to material Thickness 1.5mm.

- SPECIFICATION COMPLIANCE : IS: 2712 / 1998 GRADE W / 3

- THICKNESS: 0,25mm, 0,5mm, 0.8mm, 1mm, 1,5mm, 2mm, 3mm, 4mm, 5mm, 6mm

- DIMENSION OF SHEETS (mm) : 1500 x 1500, 1500 x 3100, 1500 x 1000, 1500 x 2000, 1270 x 1270, 1270 x 3810, 3000 x 3000

- APPLICATIONS: To Seal off Water, Steam , Air & Alkaline Chemicals for low stress conditions

- MODEL: CJ-21
