CHARMINAR CJ-29 Acid Its

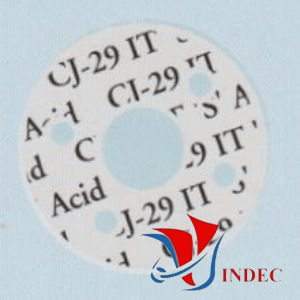

CHARMINAR CJ - 29 Acid Its : COMPRESSED ASBESTOS FIBER JOINTING SHEET

- MATERIAL TYPE : Made from Chrysotite Asbestos Fiber with Synthetic Elastomers and Inorganic fillers.

- SURFACE FINISH : White

- DENSITY (Test Method : IS:2712/1998) : 1.70 - 2.20 G/cm3

- TENSILE STRENGTH : (Test Method : IS:2712/1998) : > 6.7 Mpa

- OPERATING CONDITION

+ Maximum pressure : 20 Bar

+ Maximum Temperature : 150°C

+ The following Information Applies to material Thickness 1.5mm.

- SPECIFICATION COMPLIANCE : DIN : 3754 IT

- THICKNESS: 0,25mm, 0,5mm, 0.8mm, 1mm, 1,5mm, 2mm, 3mm, 4mm, 5mm, 6mm

- DIMENSION OF SHEETS (mm) : 1500 x 1500, 1500 x 3100, 1500 x 1000, 1500 x 2000, 1270 x 1270, 1270 x 3810, 3000 x 3000

- APPLICATIONS: To seal of aggressive organic acids alkalies, alcohals, easters & ketones.

- MODEL: CJ-29 Acid Its
